Description

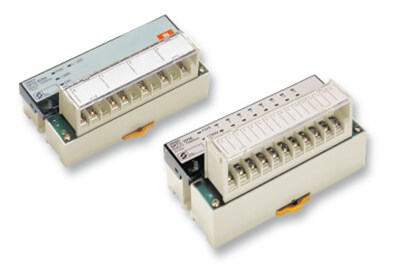

SRT2
Fast and easy over CompoBus/S
Omron’s unique CompoBus/S is the most efficient I/O bus for machine automation. With free topology and up to 500 m bus length in long-distance mode, it can be used as a remote I/O system. In high-speed mode (100 m max.) the guaranteed sub-millisecond cycle time makes it ideal for efficient machine control. Used with the compact CPM2C-S PLC as master, your machine control system will fit in the smallest spaces.
- Compact size in IP20 housing
- Fast cycle time; less than 1 ms per 256 I/O points
- Easy set-up; no software required
- Choice of 4- 8- and 16-point Digital I/O; transistor-, and relay models
- Analog In/Outputs and customisable modules available
Specifications & ordering info
Ordering information
|
Unit type
|
Specifications
|
Size in mm (H×W×D)
|
Remarks
|
Order code
|
|
4-point PNP input unit
|
24 VDC, 6 mA per point
|
48×80×50
|
Compact IP20 I/O
|
SRT2-ID04-1
|
|
8-point PNP input unit
|
24 VDC, 6 mA per point
|
48×80×50
|
Compact IP20 I/O
|
SRT2-ID08-1
|
|
16-point PNP input unit
|
24 VDC, 6 mA per point
|
48×105×50
|
Compact IP20 I/O
|
SRT2-ID16-1
|
|
16-point PNP input unit
|
24 VDC, 6 mA per point
|
50×180×59
|
3-tier connection for direct sensor wiring
|
SRT2-ID16T-1
|
|
4-point PNP output unit
|
24 VDC, 0.3 A per point
|
48×80×50
|
Compact IP20 I/O
|
SRT2-OD04-1
|
|
8-point PNP output unit
|
24 VDC, 0.3 A per point
|
48×80×50
|
Compact IP20 I/O
|
SRT2-OD08-1
|
|
16-point PNP output unit
|
24 VDC, 0.3 A per point
|
48×105×50
|
Compact IP20 I/O
|
SRT2-OD16-1
|
|
16-point PNP output unit
|
24 VDC, 0.5 A per point
|
50×180×59
|
3-tier connection for direct sensor/actuator wiring
|
SRT2-OD16T-1
|
|
8-point input + 8-point output unit (PNP)
|
24 VDC, input 6 mA, output 0.3 A per point
|
50×180×59
|
3-tier connection for direct actuator wiring
|
SRT2-MD16T-1
|
|
8-point relay output unit
|
Max. 3 A per point
|
50×100×50
|
with easy-to-replace relays
|
SRT2-ROC08
|
|
16-point relay output unit
|
Max. 3 A per point
|
50×155×50
|
with easy-to-replace relays
|
SRT2-ROC16
|
|
4-Channel analog input unit
|
0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V,
0 to 20 mA, 4 to 20 mA
|
48×105×50
|
Resolution 1/6000, conversion time 4 ms (4 inputs)
|
SRT2-AD04
|
|
2-Channel analog output unit
|
0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V,
0 to 20 mA, 4 to 20 mA
|
48×105×50
|
Resolution 1/6000, conversion time 2 ms (2 outputs)
|
SRT2-DA02
|
Note: To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.
Accessories
|
Type
|
Order code
|
|
CompoBus/S 4-wire flatcable for power and communication (100 m)
|
SCA1-4F10
|
|
CompoBus/S branch connector (IDC) for flatcable
|
SCN1-TH4
|
|
CompoBus/S termination connector (IDC) for flatcable
|
SCN1-TH4T
|
|
CompoBus/S termination block (screw connection)
|
SRS1-T
|
