Description
SRT2-*C*
IP67 CompoBus/S

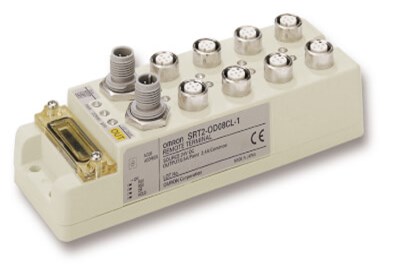

Rugged I/O units for field mounting. Omron’s unique CompoBus/S is the most efficient I/O bus for machine automation. With free topology and up to 500 m bus length in long-distance mode, it can be used as a remote I/O system. In high-speed mode (100 m max.) the guaranteed sub-millisecond cycle time makes it ideal for efficient machine control. With IP67 slave modules distributed throughout the machine, the need for protective enclosures is minimised.
- IP67 protection against dust and water
- Fast cycle time; less than 1 ms for 256 I/O points
- Easy setup; no software required
- Choice of 4- and 8-point Digital I/O
- M12 connectors for easy field wiring
Specifications & ordering info
Ordering information
|
Unit type
|
Specifications
|
Size in mm (H×W×D)
|
Order code
|
|
4-point PNP input unit
|
24 V, 6 mA
|
114×54×45
|
SRT2-ID04CL-1
|
|
8-point PNP input unit
|
24 V, 6 mA
|
114×54×45
|
SRT2-ID08CL-1
|
|
4-point PNP output unit
|
24 V, 0.5 A per point
|
114×54×45
|
SRT2-OD04CL-1
|
|
8-point PNP output unit
|
24 V, 0.5 A per point
|
114×54×45
|
SRT2-OD08CL-1
|
Note: To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.
Accessories
|
Unit type
|
Specifications
|
Remarks
|
Order code
|
|
CompoBus/S terminator
|
with M12 plug connector
|
–
|
SRS2-1
|
|
M12 connector
|
M12 plug connector (male), screw type
|
For CompoBus/S 4-wire round cable
|
XS2G-D4S7
|
|
M12 connector
|
M12 socket connector (female), screw type
|
For CompoBus/S 4-wire round cable
|
XS2C-D4S7
|
|
M12 T-connector (4-wire)
|
with two M12 socket connectors (female) + one M12 plug connector (male)
|
–
|
XS2R-D427-5
|
|
4-wire I/O connection cable
|
with one M12 plug connector (male), 1 m
|
–
|
XS2H-D421-C80-A
|
|
4-wire I/O connection cable
|
with one M12 plug connector (male), 2 m
|
–
|
XS2H-D421-D80-A
|
|
4-wire I/O connection cable
|
with one M12 plug connector (male), 5 m
|
–
|
XS2H-D421-G80-A
|
|
4-wire I/O connection cable
|
with one M12 socket connector (female) and one M12 plug connector (male), 1 m
|
–
|
XS2W-D421-C81-A
|
|
4-wire I/O connection cable
|
with one M12 socket connector (female) and one M12 plug connector (male), 2 m
|
–
|
XS2W-D421-D81-A
|
|
4-wire I/O connection cable
|
with one M12 socket connector (female) and one M12 plug connector (male), 5 m
|
–
|
XS2W-D421-G81-A
|
|
Y-connector for 16-point I/O units
|
Splits the 2 I/O points per M12 connector to two M12 connectors
|
–
|
XS2R-D426-1
|
|
Y-connector cable for 16-point I/O units
|
Splits the 2 I/O points per M12 connector to two M12 connectors, 1 m
|
–
|
XS2R-D426-C11-F
|
|
M12 connector
|
M12 plug connector (male), solder type
|
–
|
XS2G-D421
|
|
M12 connector
|
M12 socket connector (female), solder type
|
–
|
XS2C-D421
|
|
IP67 cap for M12 sockets
|
Metal cap for unused I/O connections
|
–
|
XS2Z-12
|
