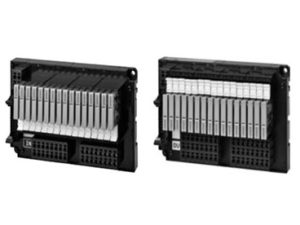

G70A

G70A; 16 noktalı G/Ç Terminal Soketi, G2R Röleler, Solid State Röleler ve Daha Fazla Sistem Esnekliği İçin Zaman Röleleri gibi Çeşitli Cihazlarla uyumludur.

  • Basit bir bastırılarak oturtulan konnektör ile PLC’ye bağlanır.
  • G70A-ZOC16-3, DeviceNet bağlantısı için DRT1-OD32ML G/Ç Terminali veya CompoBus/S bağlantısı için SRT2-VOD16ML Konnektör Terminali ile birleştirilebilir.
  • SPDT röleleri monte edilebilir.
  • VDE (VDE0106) ve CE standartlarına uygundur.
  • Elektrik çarpmasına karşı koruyucu (parmak/dokunma koruması) terminal soketi.
  • DIN rayına monte edilebilir.
  • Yüksek kapasiteli (10 A) terminal soketi.
  • Mükemmel gürültü dayanımı özellikleri.
  • Bobin şok dalgası bastırma için dahili diyotlar.

Özellikler ve sipariş bilgisi

Ordering Information

I/O Terminal Socket

Classification Internal I/O common Rated voltage Order code
Output NPN (+ common) 24 VDC G70A-ZOC16-3
PNP (– common) 24 VDC G70A-ZOC16-4
Input NPN/PNP 110 VDC max., 240 VAC max.

2
 G70A-ZIM16-5

Suitable Relay/Solid State Relay/Solid-State Timer

Classification I/O Terminal Socket Relay Solid State Relay (SSR) Solid-State Timer
Output NPN: G70A-ZOC16-3
PNP: G70A-ZOC16-4		 G2R-1-S
G2R-1-SN
G2R-1-S (S)
G2R-1-SN (S)		 G3R-OA202SZN
G3R-OA202SLN
G3R-ODX02SN
G3R-OD201SNG3RZ-201SLN		 H3RN-1
H3RN-11
Input G70A-ZIM16-5 G2R-1A3-SN

2

,

2

G2R-13-SN

2

,

2

G2R-1A3-SND

2

,

2

G2R-13-SND

2

,

2
 G3R-IAZR1SN
G3R-IDZR1SN
G3R-IDZR1SN-1		 –

Accessories (Order Separately)

Short Bar

Applicable model Order code
G70A-ZOC16-3
G70A-ZOC16-4		 G78-16-E
G70A-ZIM16-5

Connecting Sockets for I/O Terminal Expansion

Number of poles Order code
1 pole (G2R: 1 pole usage) P2RF-05-E
2 poles (G2R: 2 poles usage) P2RF-08-E

Accessories for DIN Track Mounting

Appearance Name Order code
DIN Tracks 1 m PFP-100N
0.5 m PFP-50N
End Plate PFP-M
Spacer PFP-S

Specifications

Ratings/Characteristics

Item G70A-ZOC16-3 G70A-ZOC16-4 G70A-ZIM16-5
Contact resistance 10 mΩ (excluding the resistance of the relay to be used)
Permissible current 10 A 100 mA
Max. operating voltage 380 VAC, 125 VDC 30 VDC
Dielectric strength 4,000 VAC, 50/60 Hz for 1 min between connector and output terminals
2,000 VAC, 50/60 Hz for 1 min between output terminals
250 VAC, 50/60 Hz for 1 min between connectors		 4,000 VAC, 50/60 Hz for 1 min between
connector and input terminals
2,000 VAC, 50/60 Hz for 1 min between
coil terminals
250 VAC, 50/60 Hz for 1 min between connectors
Insulation resistance Between connector and I/O terminals: 1,000 MW (at 500 V)
Other: 100 MW (at 500 V)
Vibration resistance Malfunction: 10 to 61.2 to 10 Hz, 0.1-mm single amplitude (0.2-mm double amplitude); 61.2 to 150 to 61.2 Hz, 14.7 m/s2
Shock resistance Malfunction: 200 m/s2
Noise immunity Noise level: 2.0 kV; pulse width: 100 ns to 1 μs
Ambient temperature Operating: 0 to 55°C (with no condensation or icing)
Ambient humidity Operating: 35% to 85%
Coil surge absorption element Diode: 1 A, 400 V Varistor

2
Protection diode for inverse
connection		 Diode (2 A, withstand inverse voltage: 40 V)
Tensile strength No damage when a tensile force of 49 N is applied for 1 second in any direction
I/O terminal tightening torque Tightening strength: 0.59 N·m;
Tensile strength 49 N for 1 min.
Weight Approx. 400 g

Approved Standards

The rated values for safety standard certification are not the same as individually defined performance values. Always check the specifications before use.

UL standard certification (File No. E95399)

Ratings Standard number Category Listed/Recognized Contact ratings Order code
– UL508 NRAQ2 Recognized 10 A 250 VAC G70A-ZOC16-3
G70A-ZOC16-4

CSA certified (File No. LR35535)

Ratings Standard number Class number Contact ratings Order code
– CSA C22.2
No.14		 3211 04 10 A 250 VAC G70A-ZOC16-3
10 A 30 VDC G70A-ZOC16-4

VDE Standards

Standard number Certification No. Order code
VDE0160 124796 G70A-ZOC16-3
G70A-ZOC16-4
