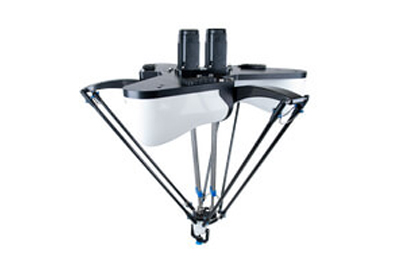

Omron X-Delta 5

Contact sales

+90 216 540 59 91

Request a Price Quote



Category:

Description

X-Delta 5

X-Delta 5; The innovative concept of 2 parallel axes results in the most robust Delta Pick&Place robot

  • Robot control integrated in the NJ robotics controller
  • Control of up to 8 robots by one controller
  • Degrees of freedom: 5
  • Up to 150 cycle per minute
  • Models from 650 to 1,300 mm working range
  • 1 kg max. payload
  • IP65 protection class
  • Low maintenance, easy access to components

Delta Robot Series

x-delta 5 side prod

CR_UGD5_XL

  • Rated working range: Ø 1,300 x 250 mm (Max. 400 mm)
  • Max. payload: 1 kg
  • Cycle time 25/305/25 mm (0.1 kg): Up to 120 cycle/min
  • Protection class: IP65



CR_UGD5

  • Rated working range: Ø 1,100 x 250 mm (Max. 400 mm)
  • Max. Payload: 1 kg
  • Cycle time 25/305/25 mm (0.1 kg): Up to 125 cycle/min
  • Protection class: IP65



CR_UGD5_XS

  • Rated working range: Ø 650 x 200 mm (Max. 270 mm)
  • Max. Payload: 1 kg
  • Cycle time 25/305/25 mm (0.1 kg): Up to 150 cycle/min
  • Protection class: IP65



Specifications & ordering info

Ordering information

Note: Servo motors included in the Delta robot.

Delta robot 5 axes series

① Symbol

Max. payload

Working range

Description

Axis

Applicable servo drive ②

Order code

1 kg

Ø 1,300 × 250 mm

(Max. 400)

5 axes

Arm 1

R88D-KN15H-ECT

CR_UGD5_XL

Arm 2

R88D-KN15H-ECT

Arm 3

R88D-KN15H-ECT

Rotational 4

R88D-KN08H-ECT

Tilt 5

R88D-KN08H-ECT

Ø 1,100 × 250 mm

(Max. 400)

Arm 1

R88D-KN15H-ECT

CR_UGD5

Arm 2

R88D-KN15H-ECT

Arm 3

R88D-KN15H-ECT

Rotational 4

R88D-KN08H-ECT

Tilt 5

R88D-KN08H-ECT

Ø 650 × 200 mm

(Max. 270)

Arm 1

R88D-KN15H-ECT

CR_UGD5_XS

Arm 2

R88D-KN15H-ECT

Arm 3

R88D-KN15H-ECT

Rotational 4

R88D-KN08H-ECT

Tilt 5

R88D-KN08H-ECT

Encoder cables

Symbol

Appearance

Applicable Delta robots

Order code

③

CR_UGD5_XL (Arm 1, 2, 3)

CR_UGD5 (Arm 1, 2, 3)

CR_UGD5_XS (Arm 1, 2, 3)

1.5 m

R88A-CRKC001-5NR-E

3 m

R88A-CRKC003NR-E

5 m

R88A-CRKC005NR-E

10 m

R88A-CRKC010NR-E

15 m

R88A-CRKC015NR-E

20 m

R88A-CRKC020NR-E

CR_UGD5_XL (Rotational axis 4, Tilt axis 5)

CR_UGD5 (Rotational axis 4, Tilt axis 5)

CR_UGD5_XS (Rotational axis 4, Tilt axis 5)

1.5 m

R88A-CRKA001-5CR-E

3 m

R88A-CRKA003CR-E

5 m

R88A-CRKA005CR-E

10 m

R88A-CRKA010CR-E

15 m

R88A-CRKA015CR-E

20 m

R88A-CRKA020CR-E

Absolute encoder battery cable (encoder extension cable only)

Symbol

Appearance

Specifications

Order code

④

Absolute encoder battery cable

Battery not included

0.3 m

R88A-CRGD0R3C-E

Battery included

0.3 m

R88A-CRGD0R3C-BS-E

Absolute encoder backup battery

2.000 mA.h, 3.6 V

−

R88A-BAT01G

Power and brake cables

Symbol

Appearance

Applicable Delta robots

Order code

⑤

CR_UGD5_XL

CR_UGD5

CR_UGD5_XS

Arm 1, 2, 3

Power cable with brake

1.5 m

R88A-CAGB001-5BR-E

3 m

R88A-CAGB003BR-E

5 m

R88A-CAGB005BR-E

10 m

R88A-CAGB010BR-E

15 m

R88A-CAGB015BR-E

20 m

R88A-CAGB020BR-E

Rotational axis 4,
Tilt axis 5

Power cable without brake

1.5 m

R88A-CAKA001-5SR-E

3 m

R88A-CAKA003SR-E

5 m

R88A-CAKA005SR-E

10 m

R88A-CAKA010SR-E

15 m

R88A-CAKA015SR-E

20 m

R88A-CAKA020SR-E

Brake cable

1.5 m

R88A-CAKA001-5BR-E

3 m

R88A-CAKA003BR-E

5 m

R88A-CAKA005BR-E

10 m

R88A-CAKA010BR-E

15 m

R88A-CAKA015BR-E

20 m

R88A-CAKA020BR-E

Vision

Name

Type

Order code

⑥ FQ-M series

Color

NPN

FQ-MS120-ECT

PNP

FQ-MS125-ECT

Monochrome

NPN

FQ-MS120-M-ECT

PNP

FQ-MS125-M-ECT

Machine controller

Name

Functions

Delta robot control

Axes

Order code

⑦ NJ Robotics

CPU unit

Logic sequence, motion, robotics and database connection

Control of up to 8 Delta robot
depending on the number of axes supported by the CPU

16

NJ501-4320

Logic sequence, motion and robotics

64

NJ501-4500

32

NJ501-4400

16

NJ501-4300

Control of one Delta robot

16

NJ501-4310

Power supply unit

NJ-PA3001 (220 VAC)

NJ-PD3001 (24 VDC)

Computer software

Specifications

Order code

Sysmac Studio version 1.03 or higher

SYSMAC-SE2 ⬜⬜⬜

Dimensions

CR_UGD5_XL

CR_UGD5

CR_UGD5_XS
