V430-F

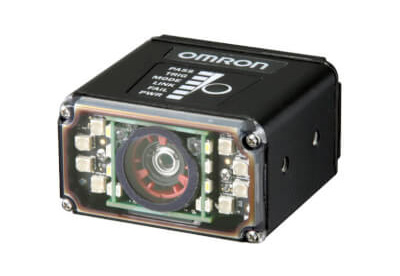

V430-F Industrial Ethernet Barcode Reader

The V430-F redefines the imager market as the smallest IP65/67-rated, true-industrial Ethernet barcode reader. With best-in-class decoding for 1D/2D or DPM codes in a rugged, ultra-compact case, the V430-F is the complete package for solving any barcode reading challenge under any condition. Combining unprecedented ease-of-use, exceptional decode performance, optional liquid lens autofocus, and ultra-small form factor, the V430 sets the benchmark as the ultimate compact imager in the industry.

  • Ultra-compact (44.5 mm x 44.5 mm x 25.4 mm)
  • IP65/67
  • High-speed Ethernet, Serial RS-232
  • X-Mode advanced decoding algorithms
  • Optional liquid lens autofocus
  • EtherNet/IP , Ethernet TCP/IP
  • Passive Power over Ethernet (PoE)
  • Integrated targeting and read/pass indicators
  • WebLink browser-based setup interface

Features

The V430 offers the most versatile decoding power available. Built on the highest-performance imaging engine in its class, V430-F readers offer an array of modular hardware options to take on any decoding task in three micro form factors. V430 readers can decode DPM DataMatrix codes, damaged or poorly-printed barcodes, as well as a mix of 1D and 2D barcodes on a single part or package.

V430-F



Datasheet
Click for other ident systems products

Specifications & ordering info

Ordering Information

Code Readers

Appearance Number of pixels Field of view Reading distance Order code
5 million pixels (Color) Wide View Autofocus
50 to 300 mm		 V430-F000W50C
Middle View V430-F000M50C
1.2 million pixels (Monochrome) Wide View Autofocus
50 to 300 mm		 V430-F000W12M
Middle View V430-F000M12M
Narrow View Autofocus
40 to 150 mm		 V430-F000N12M
0.3 million pixels (Monochrome) Middle View Fixed Focus 50 mm V430-F050M03M
Fixed Focus 81 mm V430-F081M03M
Fixed Focus 102 mm V430-F102M03M

Mounting Brackets

Appearance Type Order code
L Bracket (It’s possible to adjust the angle.) V430-AM0
Mounting Block V430-AM1

Cables

Appearance Type Connector Length Order code
I/O Cables Straight 3 m V430-W8-3M
Straight 5 m V430-W8-5M
Right angle down

2
 3 m V430-W8LD-3M
Right angle up

2
 3 m V430-W8LU-3M
Ethernet Cables Straight 3 m V430-WE-3M
Straight 5 m V430-WE-5M
Right angle down

2
 3 m V430-WELD-3M
Right angle up

2
 3 m V430-WELU-3M
Cordset, M12 12-Pin Socket to DB9 Socket with M12 12-Pin Plug Straight 3 m V430-W2-3M

Note:Connect V430-W8 to I/O connector (M12 12-pin plug) and connect to a power supply.

Optic Options

Appearance Type Order code
Front Window (for replacement) V430-AF0
Diffuser V430-AF1
Polarizer V430-AF2
Right Angle Mirror V430-AF3

Specifications

Model V430-F000⬜50C V430-F000⬜12M V430-F⬜⬜⬜M03M
Applicable codes

2
 Bar code Code 39, Code 128, BC412, ITF (Interleaved 2 of 5), EAN/UPC, Codabar, Code 93, Pharmacode, PLANET, POSTNET, Japanese Post, Australian Post, Royal Mail, Intelligent Mail, KIX, UPU, GS1 Databar (Composite)
2D code DataMatrix (ECC000-ECC200), GS1 DataMatrix, QR Code, Micro QR Code, Aztec Code, DotCode, PDF417, Micro PDF417, GS1 Databar (Stacked)
Reading performance

2
 Number of reading digits No upper limit (depends on bar width and reading distance)
Aiming light Two Blue LEDs
Light source Inner LEDs: Four White and Four Red LEDs (wave length: 625 nm)
Outer LEDs: Eight White LEDs Outer LEDs: Eight Red LEDs (wave length: 617 nm) Outer LEDs:Eight Red LEDs (wave length: 617 nm)
Reading distance/Field of view Please refer to datasheet (Q258)
Pitch angle (α) ±30°
Skew angle (β) ±30°
Tilt angle (γ) ±180°
Image capture device Effective pixels 2592 (H) x 1944 (V) 1280 (H) x 960 (V) 752 (H) x 480 (V)
Color/Monochrome Color CMOS Monochrome CMOS Monochrome CMOS
Shutter Method Rolling shutter Global shutter Global shutter
Frame Rate 5 fps 42 fps 60 fps
Shutter Speed 50 us to 100 ms
Image logging FTP
Reading trigger External trigger (edge, level), Trigger by command (Ethernet, RS-232C)
I/O specifications Input signals Trigger, New Master: 4.5 to 28 V rated (10 mA at 28 VDC)
Output signals Output1, Output2, Output3: 1 to 28 V rated (100 mA Max. at 24 VDC)
Communication specification RS-232C, Ethernet TCP/IP
Ethernet specifications 100BASE-TX/10BASE-T
Indicator Lamps PASS (Green), TRIG (Amber), MODE (Amber), LINK (Amber), FAIL (Red), PWR (Green)
Power voltage 5.0 to 30.0 VDC (including ripple)
Consumption current 0.18 A (typ.) (at 24 VDC)
Environmental specifications Ambient temperature range Operating: 0 to 40°C, Storage: -50 to +75°C (with no icing or condensation)
Ambient humidity range Operating: 5% to 95% RH, Storage: 5% to 85% RH (with no condensation)
Ambient atmosphere No corrosive gases
Vibration Resistance (destruction) 10 to 55 Hz, double amplitude: 0.35 mm, X/Y/Z directions, 10 cycles/axis
Shock resistance (destruction) 150 m/s², 3 times in each X/Y/Z directions
Degree of protection IEC 60529 IP67
Weight Main body only Approx. 68 g
Packing weight Approx. 174 g
Dimensions Main body Dimension 44.5 (W) × 44.5 (D) × 25.4 (H) mm
Packing Dimension 170 (W) × 117 (D) × 86 (H) mm
Accessories Instruction manual (“Read me first”), Compliance Sheet (CE)
LED class Risk Group Exempt (IEC 62471-1)
Safety standards EN61326-1: 2013FCC Part 15, Subpart B (Class A)UL60950-1
Material Case Aluminum diecast, alumite (black)
Reading window Acrylic

Note:

Dimensions

(Unit: mm)

Code readers

V430-F

Mounting Brackets

L Bracket V430-AM0

Material: SUS304Accessories: Phillips-HeadScrews (M3×6) (2), Washer (2)The following accessories are not used with the V430-F Series:
Phillips-Head Screws (M2×6) (2), Washers for M2 Screws (2)

Mounting Block

V430-AM1

Material: Aluminum alloyAccessories: Cap Screws (M3×6) (2)The following accessories are not used with the V430-F Series: Cap Screws (M2×8) (2)

Right Angle Mirror

V430-AF3

Material:
Bracket: Aluminum
Mirror

Ethernet cables

Cordset, M12 8-Pin Plug to RJ45 Ethernet, 3 m Straight

V430-WE-3M

Cordset, M12 8-Pin Plug to RJ45 Ethernet, 3 m Right angle down

V430-WELD-3M

Cordset, M12 8-Pin Plug to RJ45 Ethernet, 3 m Right angle up

V430-WELU-3M

Cordset, M12 8-Pin Plug to RJ45 Ethernet, 5 m Straight

V430-WE-5M

I/O Cables

Cordset, M12 12-Pin Socket to Flying Leads, 3 m Straight

V430-W8-3M

Cordset, M12 12-Pin Socket to Flying Leads, 3 m Right angle down

V430-W8LD-3M

Cordset, M12 12-Pin Socket to Flying Leads, 3 m Right angle up

V430-W8LU-3M

Cordset, M12 12-Pin Socket to Flying Leads, 5 m Straight

V430-W8-5M

Cordset, M12 12-Pin Socket to DB9 Socket with M12 12-Pin Plug, 3 m Straight

V430-W2-3M

Note:Connect V430-W8 to I/O connector (M12 12-pin plug) and connect to a power supply.
