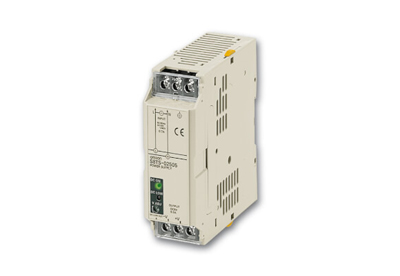

S8TS

Industrial use, modular power supply for multiple configurations

The S8TS is an expandable power supply; standard units can easily be snapped together in parallel to provide you with ultimate flexibility. Expandable up to 4 units, it can deliver a total power of 240W at 24VDC or a multi-output configuration.

  • Improves system reliability by building up N+1 redundancy
  • Standard unit; 60 W at 24 VDC, 30 W at 12 VDC and 25 W at 5 VDC
  • Battery back-up unit protects against power outage
  • Buffer unit protects against power glitches and outage
  • EMI Class B, UL Class 2, UL Class 1 division 2



Specifications & ordering info

Ordering information

Basic block

Order code

Output voltage

Output current

Screw terminal type

With bus line connectors

Without bus line connectors

24 V

2.5 A

S8TS-06024-E1

S8TS-06024

12 V

2.5 A

S8TS-03012-E1

5 V

5 A

S8TS-02505

  • Note • There are other models available on request. Please contact your Omron representative for special request.
  • • There are Bus line connector accessories available on request. Please contact your Omron representative for special request.

Specifications

Item

5 V models

24/12 V models

Single operation

Single operation

Parallel operation

Efficiency

62% min.

24 V models: 75%, 12 V models: 70% min.

Power factor

0.8 min.

24 V models: 0.9 min., 12 V models: 0.8 min.

Input voltage

100 to 240 VAC, (85 to 264 VAC), single-phase

Output voltage

Voltage adjustment

5 V ±10% min.

24 V models: 22 to 28 V, 12 V models: 12 V ±10% min.

Ripple

2% (p-p) max.

2% (p-p) max.

2% (p-p) max.

Input variation

0.5% max.

Temperature influence

0.05%/°C max. (with rated input, 10 to 100% load)

Overcurrent protection

105 to 125% of rated load current, inverted L drop, automatic reset

Overvoltage protection

yes

yes

yes

Output indicator

yes (green)

yes (green)

yes (green)

Weight

450 g max.

450 g max.

450 g max.

Series operation

yes

yes

yes

Parallel operation

no

yes

yes

Size in mm (H×W×D)

120×43×120
