Description

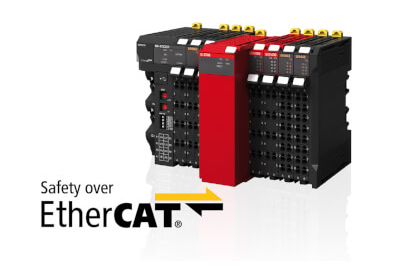

NX Safety distributed
Integrated safety into machine automation
The Sysmac automation platform integrates the safety solution within our one connection and one software concept. One connection is realised through the use of Safety over EtherCAT – FSoE – protocol. The one software is achieved by using the Sysmac Studio for configuration, programming and maintenance. The NX safety system consists of safety controller and safety I/O units. Both the safety controller and safety I/O can be freely distributed in an I/O rack throughout the network, mixing them in any combination with standard NX I/O.
- The safety controller meets Category 4, PLe according to the EN ISO 13849-1 and SIL3 according to the IEC 61508
- Up to 8 safety input points per unit
- Safety Function Blocks conforming with IEC 61131-3 standard programming
- PLCopen Function Blocks for safety
- Integration in one software, Sysmac Studio
Datasheet
Click for other programmable safety system
Specifications & ordering info
Ordering information
Communication and control units
|
Module Type
|
Protocol
|
Connection
|
Specification
|
Width
|
Order Code
|
|
Communication coupler
|
EtherCAT Slave
|
2 RJ45 ports
(in + out)
|
Up to 63 I/O units.
Max. 1,024 bytes in + 1,024 bytes out
Supports distributed clock
I/O power supply up to 10 A
|
46 mm
|
NX-ECC203
|
|
Safety controller integrated
|
NX-Bus
|
128 Safety connections
|
Up to 2 MB Safety program capacity
Up to 128 Safety slices
Up to 1024 safety I/O points
Safety and standard digital/analog slices can be connected
|
30 mm
|
NX-SL3500
|
|
32 Safety connections
|
512 KB Safety program capacity
Up to 32 Safety slices
Up to 256 safety I/O points
Safety and standard digital/analog slices can be connected
|
30 mm
|
NX-SL3300
|
Safety Digital I/O units
|
Module type
|
Channels, Signal type
|
Performance
, I/O Refresh Mode |
Connection type
|
Width
|
Order Code
|
|
Safety Digital Input
|
4 inputs + 2 test outputs
|
Free Run
|
Screwless push-in (NX-TBA082)
|
12 mm
|
NX-SIH400
|
|
8 inputs + 2 test outputs
|
Free Run
|
Screwless push-in (NX-TBA162)
|
12 mm
|
NX-SID800
|
|
Safety Digital Output
|
2 outputs, 2.0 A
|
Free Run
|
Screwless push-in (NX-TBA082)
|
12 mm
|
NX-SOH200
|
|
4 outputs, 0.5 A
|
Free Run
|
Screwless push-in (NX-TBA082)
|
12 mm
|
NX-SOD400
|
Note: For a standard I/O unit please check the chapter NX-I/O.
Software tool
To program the NX-Series use the Sysmac studio software tool, please have a look on the section Software to select your licence
Accessories
Ethernet cables and accessories
EtherCAT patch cables, improved shield
|
Shape
|
Connector 1
|
Connector 2
|
Material
|
Cable
|
Color
|
Length in cm
|
Order code
|
|
20
|
30
|
50
|
100
|
150
|
200
|
300
|
500
|
750
|
1000
|
1500
|
2000
|
|
|
M12 straight
|
M12 straight
|
PVC
|
AWG22, 2 pairs
|
Black
|
–
|
–
|
⬛
|
⬛
|
–
|
⬛
|
⬛
|
⬛
|
–
|
⬛
|
–
|
–
|
XS5W-T421-[.]M2-SS
|
|
|
M12 straight
|
RJ45
|
PVC
|
AWG22, 2 pairs
|
Black
|
–
|
–
|
⬛
|
⬛
|
–
|
⬛
|
⬛
|
⬛
|
–
|
⬛
|
–
|
–
|
XS5W-T421-[.]MC-SS
|
Note: For [.] fill in the 1-character length code.
Ethernet patch cables, standard RJ45 connectors
|
Shape
|
Connector 1
|
Connector 2
|
Material
|
Cable
|
Color
|
Length in cm
|
Order code
|
|
20
|
30
|
50
|
100
|
150
|
200
|
300
|
500
|
750
|
1000
|
1500
|
2000
|
|
|
RJ45 std.
|
RJ45 std.
|
LSZH
|
Cat6a S/FTP 4 pairs
|
Blue
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
XS6W-6LSZH8SS[…]CM-B
|
|
|
RJ45 std.
|
RJ45 std.
|
LSZH
|
Cat6a S/FTP 4 pairs
|
Yellow
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
XS6W-6LSZH8SS[…]CM-Y
|
|
|
RJ45 std.
|
RJ45 std.
|
LSZH
|
Cat6a S/FTP 4 pairs
|
Green
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
XS6W-6LSZH8SS[…]CM-G
|
|
|
RJ45 std.
|
RJ45 std.
|
PUR
|
Cat5e S/FTP 4 pairs
|
Green
|
–
|
–
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
⬛
|
XS6W-5PUR8SS[…]CM-G
|
Note: For […] fill in the length in cm.
Ethernet patch cables, RJ45/M12 connectors
|
Shape
|
Connector 1
|
Connector 2
|
Material
|
Cable
|
Color
|
Length in cm
|
Order code
|
|
30
|
50
|
100
|
200
|
300
|
500
|
1000
|
1500
|
|
|
RJ45
|
RJ45
|
PVC
|
Cat5e Shielded Quad
|
Light Blue
|
A
|
B
|
C
|
D
|
E
|
G
|
J
|
K
|
XS5W-T421-[.]MD-K
|
|
|
M12 straight
|
M12 straight
|
PVC
|
Cat5e Shielded Quad
|
Light Blue
|
–
|
B
|
C
|
D
|
E
|
G
|
J
|
K
|
XS5W-T421-[.]M2-K
|
|
|
M12 straight
|
RJ45
|
PVC
|
Cat5e Shielded Quad
|
Light Blue
|
A
|
B
|
C
|
D
|
E
|
G
|
J
|
K
|
XS5W-T421-[.]MC-K
|
|
|
M12 angled
|
M12 angled
|
PVC
|
Cat5e Shielded Quad
|
Light Blue
|
–
|
B
|
C
|
D
|
E
|
G
|
J
|
K
|
XS5W-T422-[.]M2-K
|
|
|
M12 angled
|
RJ45
|
PVC
|
Cat5e Shielded Quad
|
Light Blue
|
A
|
B
|
C
|
D
|
E
|
G
|
J
|
K
|
XS5W-T422-[.]MC-K
|
Note: For [.] fill in the 1-character length code.
Specifications
|
Item
|
XS6W-6LSZH8SS_CM-_
|
XS6W-5PUR8SS_CM-G
|
|
Rated current
|
1 A (at 50°C)
|
|
Withstand voltage
|
1,000 VDC for 60 s (leakage current: 1 mA max.)
|
|
Ambient operating temperature
|
−20 to 60°C
|
−40 to 85°C
|
|
Ambient storage temperature
|
−20 to 60°C
|
−40 to 85°C
|
|
Ambient installation temperature
|
0 to 50°C
|
−10 to 60°C
|
|
Protective structure
|
IP20
|
IP20
|
Accessories
Ethernet cables and accessories
Accessories
|
Type
|
Connector
|
Specification
|
Color
|
Length
|
Order code
|
|
Ethernet installation cable
|
none
|
CAT 5, SF/UTP, 4 × 2 × AWG 24/1
(solid core), Polyurethane (PUR)
|
Green
|
100 m
|
WM IE-5IC4x2xAWG24/1-PUR
|
|
Ethernet installation cable
|
none
|
CAT 5, SF/UTP, 4 × 2 × AWG 26/7
(stranded core), Polyurethane (PUR)
|
100 m
|
WM IE-5CC4x2xAWG26/7-PUR
|
|
Ethernet socket
|
RJ45 socket
|
DIN-rail mount socket to terminate
installation cable in the cabinet
|
Grey
|
60 × 17.5 × 67 mm
|
WM IE-TO-RJ45-FJ-B
|
|
Ethernet field-mount plugs
|
Metal RJ45
|
for AWG22 to AWG26
|
Chrome
|
52 mm
|
WM IE-PS-RJ45-FH-BK
|
|
Ethernet field-mount plugs
|
Plastic RJ45
|
for AWG22 to AWG24
|
Black
|
52 mm
|
XS6G-T421-1
|
Industrial switching hubs
|
Shape
|
Functions
|
Ports
|
Failure detection
|
Power supply voltage
|
Order code
|
|
|
Quality of Service (QoS):
EtherNet/IP control data priority
Failure detection:
Broadcast storm and LSI error detection
10/100BASE-TX, Auto-negotiation
|
3
|
–
|
24.0 VDC±5%
|
W4S1-03B
|
|
|
5
|
W4S1-05B
|
|
⬛
|
W4S1-05C
|
EtherCAT junction slave
|
Shape
|
Functions
|
Ports
|
Power supply voltage
|
Order code
|
|
|
Creation of star- and tree topologies
in EtherCAT networks.
Distributed Clock (DC) is supported.
|
3
|
20.4 to 28.8 VDC
(24 VDC –15% to 20%)
|
GX-JC03
|
|
|
6
|
GX-JC06
|
