Omron A22NS/W

Satışla iletişime geçin

(0216) 540 59 91

Fiyat Teklifi İsteyin

Kategoriler:

Açıklama

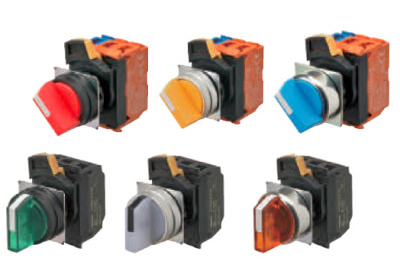

Omron A22NS/W; Renk kodlama, çalışma süresi ve güvenlik açısından üstün, klasik tasarımlı seçim anahtarları

Omron A22NS/W; Tüm modelleriyle 22 mm’lik seçici switch serisi. Bu güvenilir switchler, geniş bir renk ve kenarlık malzemesi yelpazesiyle sunulmaktadır.

  • Çevirmeli tip seçici switchler, kullanıcıya makinayı çalıştırmak için veya makina çalışma şekilleri arasında geçiş yapmak için güvenilir bir yol sağlar.
  • Manuel veya otomatik sıfırlamalı 2 ve 3 konumlu anahtarlar
  • 46,8 mm’den daha az montaj derinliği
  • En fazla 6 adet kontak bloğu (boydan boya 3 kontak bloğu ve 2 sıra derinlik)
  • Simetrik kontak bloğu
  • Plus bastırmalı terminal bloğu tipi
  • Hızlı ve kolay montaj sağlayan geçmeli switch ünitesi
  • RoHS uyumluluğu

Özellikler ve sipariş bilgisi

Ordering information



Lighted/
Non-Lighted

Bezel material

Reset

Contacts group 102

*1 Contacts

LED

Color

Order code

2

*2

G: General/Screw terminal block
P: General/Push-In Plus terminal block

Operational mode (Positions)

2 positions

3 positions

Lighted

Plastic

Manual

1NO 1NC

24 VDC

Green

A22NW-2BM-TGA-G102-GC

A22NW-3BM-TGA-G102-GC

Auto reset on Left

1NO 1NC

200 to 240 VAC

Red

A22NW-2BL-TRA-G102-RE

A22NW-3BL-TRA-G102-RE

Metal

Manual

1NO 1NC

24 VDC

Green

A22NW-2RM-TGA-G102-GC

A22NW-3RM-TGA-G102-GC

Auto reset on Left

1NO 1NC

200 to 240 VAC

Red

A22NW-2RL-TRA-G102-RE

A22NW-3RL-TRA-G102-RE

Brushed metal

Manual

1NO 1NC

24 VDC

Green

A22NW-2MM-TGA-G102-GC

A22NW-3MM-TGA-G102-GC

Auto reset on Left

1NO 1NC

200 to 240 VAC

Red

A22NW-2ML-TRA-G102-RC

A22NW-3ML-TRA-G102-RC

Non-lighted

Plastic

Manual

1NO 1NC

–

Green

A22NS-2BM-NGA-G102-NN

A22NS-3BM-NGA-G102-NN

Auto reset on Left

1NO 1NC

–

Red

A22NS-2BL-NRA-G102-NN

A22NS-3BL-NRA-G102-NN

Metal

Manual

1NO 1NC

–

Yellow

A22NS-3BL-NRA-G102-NN

A22NS-3RM-NYA-G102-NN

Auto reset on L/R

1NO 1NC

–

Black

–

A22NS-3RB-NBA-G102-NN

Brushed metal

Manual

1NO 1NC

–

Green

A22NS-2MM-NGA-G102-NN

A22NS-3MM-NGA-G102-NN

Auto reset on L/R

1NO 1NC

–

Red

–

A22NS-3MB-NRA-G102-NN



Code

Contact blocks

Non-lighted

Lighted

Unit position

No. of positions

Unit position

No. of positions

NO

NC

(1)

(2)

(3)

Two
positions

Three
positions

(1)

(2)

(3)

Two
positions

Three
positions

100

1

0

NO

–

–

Yes

–

NO

Lighting unit

–

Yes

–

002

0

1

–

–

NC

Yes

–

–

Lighting unit

NC

Yes

–

101

2

0

NO

–

NO

Yes

Yes

NO

Lighting unit

NO

Yes

Yes

102

1

1

NO

–

NC

Yes

Yes

NO

Lighting unit

NC

Yes

Yes

201

1

1

NC

–

NO

–

Yes

NC

Lighting unit

NO

–

Yes

202

0

2

NC

–

NC

Yes

Yes

NC

Lighting unit

NC

Yes

Yes

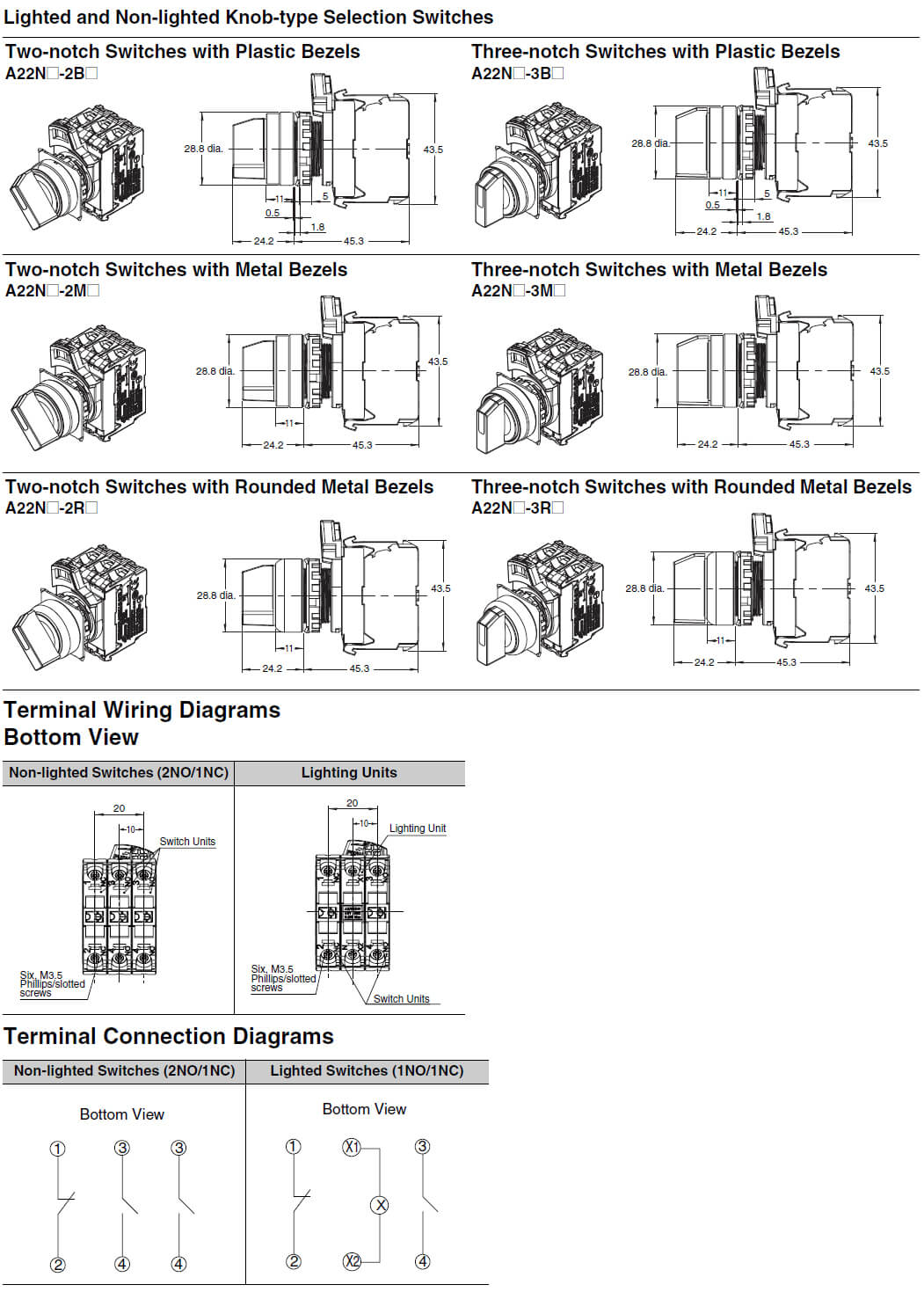

List of models



Screw terminal blocks/Push-In Plus terminal blocks

Non-lighted

Lighted

Plastic bezels

A22NS-_B

A22NW-_B

Two positions

Three positions

Two positions

Three positions

Brushed metal bezels

A22NS-_M

A22NW-_M

Two positions

Three positions

Two positions

Three positions

Metal bezels

A22NS-_R

A22NW-_R

Two positions

Three positions

Two positions

Three positions

Operation angle



Subassemblies

Switch structure

You can order Operation units, LED lamp, Mounting collars, and Contact blocks individually. Use them in combination for models that are not available as assembled switches. They can also be used as inventory for maintenance parts.



Reference for:

A22NW-2BM-TRA-G102-GC
2 positions Manual

A22NW-3BB-TGA-P102-GC

3 positions Auto reset on L/R

Operational unit

A22NZ-2BM-TGA

A22NZ-3BB-TGA

Mounting collar

A22NZ-H-01

Contact block SPST-NO

A22NZ-S-G1A

A22NZ-S-P1A

Contact block SPST-NC

A22NZ-S-G1B

A22NZ-S-P1B

Lighting unit 24 VAC/VDC

A22NZ-T-C

A22NZ-T-CP

LED lamp 24 VAC/DC

A22NZ-L-GC

Operational units



Lighted/Non-Lighted

Bezel material

Reset

Color

Order code

Operational mode (Positions)

2 positions

3 positions

Lighted

Plastic

Manual

Green

A22NZ-2BM-TGA

A22NZ-3BM-TGA

Auto reset on Left

Red

A22NZ-2BL-TRA

A22NZ-3BL-TRA

Metal

Manual

Green

A22NZ-2RM-TGA

A22NZ-3RM-TGA

Auto reset on Left

Red

A22NZ-2RL-TRA

A22NZ-3RL-TRA

Brushed metal

Manual

Green

A22NZ-2MM-TGA

A22NZ-3MM-TGA

Auto reset on Left

Red

A22NZ-2ML-TRA

A22NZ-3ML-TRA

Non-lighted

Plastic

Manual

Green

A22NZ-2BM-NGA

A22NZ-3BM-NGA

Auto reset on Left

Red

A22NZ-2BL-NRA

A22NZ-3BL-NRA

Metal

Manual

Yellow

A22NZ-2RM-NYA

A22NZ-3RM-NYA

Auto reset on L/R

Black

–

A22NZ-3RB-NBA

Brushed metal

Manual

Green

A22NZ-2MM-NGA

A22NZ-3MM-NGA

Auto reset on L/R

Red

–

A22NZ-3MB-NRA

Mounting collar



Appearance

Order code

A22NZ-H-01

Contact blocks



Appearance

Terminal specification

Contacts

Order code

Screw terminal block

SPST-NO (blue)

A22NZ-S-G1A

SPST-NC (orange)

A22NZ-S-G1B

Push-In Plus terminal block

SPST-NO (blue)

A22NZ-S-P1A

SPST-NC (red)

A22NZ-S-P1B

Push-In Plus terminal block

DPST-NO (blue)

A22NZ-S-P2A

DPST-NC (red)

A22NZ-S-P2B

SPST-NO/SPST-NC (white)

A22NZ-S-P2C

Lighting units



Appearance

Terminal specification

Applied voltage

Order code

Screw terminal block

24 VAC/DC

A22NZ-T-C

100/110/120 VAC

A22NZ-T-D

200/220/230/240 VAC

A22NZ-T-E

Push-In Plus terminal block

24 VAC/DC

A22NZ-T-CP

100/110/120 VAC

A22NZ-T-DP

200/220/230/240 VAC

A22NZ-T-EP

LED lamp



Appearance

Color

Order code

24 VAC/DC

100/110/120 VAC

200/220/230/240 VAC

Red

A22NZ-L-RC

A22NZ-L-RD

A22NZ-L-RE

Green

A22NZ-L-GC

A22NZ-L-GD

A22NZ-L-GE

Yellow

A22NZ-L-YC

A22NZ-L-YD

A22NZ-L-YE

White

A22NZ-L-WC

A22NZ-L-WD

A22NZ-L-WE

Blue

A22NZ-L-AC

A22NZ-L-AD

A22NZ-L-AE

Orange

A22NZ-L-OC

A22NZ-L-OD

A22NZ-L-OE

Accessories (Order separately)



Item

Appearance

Description

Order code

Reinforcement plate

Used to ensure robustness or when the second of third level of contact blocks are attached.

A22NZ-A-C01

Tightening wrench

Used to tighten mounting nuts from the back of the panel.

A22NZ-A-301

LED lamp extractor

Made of rubber and used to easily remove and attach LED lamps.

A22NZ-A-302

Control Box

Used to install one pushbutton.

A22NZ-A-B01Y



Item

Appearance

Description

Order code

Legend plate frame

Legend Plate with no text on black background. For 22.3-mm panel hole diameter

A22NZ-A-50103

Legend plates

Without text

White

A22Z-3443W

Black

A22Z-3443B

Transparent

A22Z-3443C

White text on red background

“STOP”

A22Z-3443R-4

White text on black background

“START”

A22Z-3443B-3

Specifications

Selector switches



Item

Non-lighted models

Lighted models

Allowable operating frequency

Mechanical

30 operations/min max.

Electrical

30 operations/min max.

Insulated resistance

100 MΩ min. (at 500 VDC)

Dielectric strength

Between terminals of same polarity

2,500 VAC at 50/60 Hz for 1 min

Between each terminal and ground

2,500 VAC at 50/60 Hz for 1 min

Vibration resistance

Malfunction

10 to 55 Hz, 1.5-mm double amplitude (malfunction within 1 ms)

Shock resistance

Malfunction

1,000 m/s² max. (malfunction within 1 ms)

Durability

Mechanical

500,000 operations min. (3 positions: 300,000 operations min.)

Electrical

500,000 operations min. (3 positions: 300,000 operations min.)
