Omron A22N

Açıklama

Omron A22N; Evrensel tasarımlı 22 mm push butonlar

Omron A22N; Yuvarlak basmalı anahtarlar hem ışıklı hem ışıksız olarak plastik, fırçalanmış metal ve metal bezel seçenekleriyle gelir. Renk kodlama, çalışma süresi ve güvenlik açısından avantajlıdır.

Estetik tasarıma sahip kenarlıklar ve renk çeşitleri
46,8 mm’den daha az montaj derinliği
En fazla 6 adet kontak bloğu (boydan boya 3 kontak bloğu ve 2 sıra derinlik)
Simetrik kontak bloğu
Plus bastırmalı terminal bloğu tipi
Hızlı ve kolay montaj sağlayan geçmeli switch ünitesi
RoHS uyumluluğu

Özellikler ve sipariş bilgisi

Ordering information

Lighted/ Non-Lighted	Bezel material	Top shape	Contacts group 102 *1 Contacts	LED	Color	Order code *2 G: General/Screw terminal block P: General/Push-In Plus terminal block
						Operational mode
						Momentary	Alternate
Lighted	Plastic	Full guard	1NO 1NC	24 V	Green	A22NL-BGM-TGA-G102-GC	A22NL-BGA-TGA-G102-GC
	Plastic	Flat	1NO 1NC	200-240 VAC	Red	A22NL-BNM-TRA-G102-RE	A22NL-BNA-TRA-G102-RE
	Metal	Flat	1NO 1NC	24 V	Green	A22NL-RNM-TGA-G102-GC	A22NL-RNA-TGA-G102-GC
	Metal	Projected	1NO 1NC	200-240 VAC	Red	A22NL-RPM-TRA-G102-RE	A22NL-RPA-TRA-G102-RE
	Brushed metal	Full guard	1NO 1NC	24 V	Green	A22NL-MGM-TGA-G102-GC	A22NL-MGA-TGA-G102-GC
	Brushed metal	Projected	1NO 1NC	200-240 VAC	Red	A22NL-MPM-TRA-G102-RE	A22NL-MPA-TRA-G102-RE
Non-lighted	Plastic	Flat	1NO 1NC	–	Red	A22NN-BNM-NRA-G102-NN	A22NN-BNA-NRA-G102-NN
	Plastic	Projected	1NO 1NC	–	Black	A22NN-BPM-NBA-G102-NN	A22NN-BPA-NBA-G102-NN
	Metal	Flat	1NO 1NC	–	Green	A22NN-RNM-NGA-G102-NN	A22NN-RNA-NGA-G102-NN
	Metal	Projected	1NO 1NC	–	Red	A22NN-RPM-NRA-G102-NN	A22NN-RPA-NRA-G102-NN
	Brushed metal	Flat	1NO 1NC	–	White	A22NN-MNM-NWA-G102-NN	A22NN-MNA-NWA-G102-NN
	Brushed metal	Projected	1NO 1NC	–	Yellow	A22NN-MPM-NYA-G102-NN	A22NN-MPM-NYA-G102-NN

Code	Contact blocks		Unit position
	Contact blocks		Non-lighted			Lighted
	NO	NC	(1)	(2)	(3)	(1)	(2)	(3)
100	1	0	NO	–	–	NO	Lighting Unit	–
002	0	1	–	–	NC	–	Lighting Unit	NC
101	2	0	NO	–	NO	NO	Lighting Unit	NO
102	1	1	NO	–	NC	NO	Lighting Unit	NC
202	0	2	NC	–	NC	NC	Lighting Unit	NC

List of models

	Screw terminal blocks/Push-In Plus terminal blocks
	Plastic bezels	Brushed Metal bezels	Metal bezels
Flat	A22N_-BN	A22N_-MN	A22N_-RN
Projected	A22N_-BP	A22N_-MP	A22N_-RP
Full guard	A22N_-BG	A22N_-MG

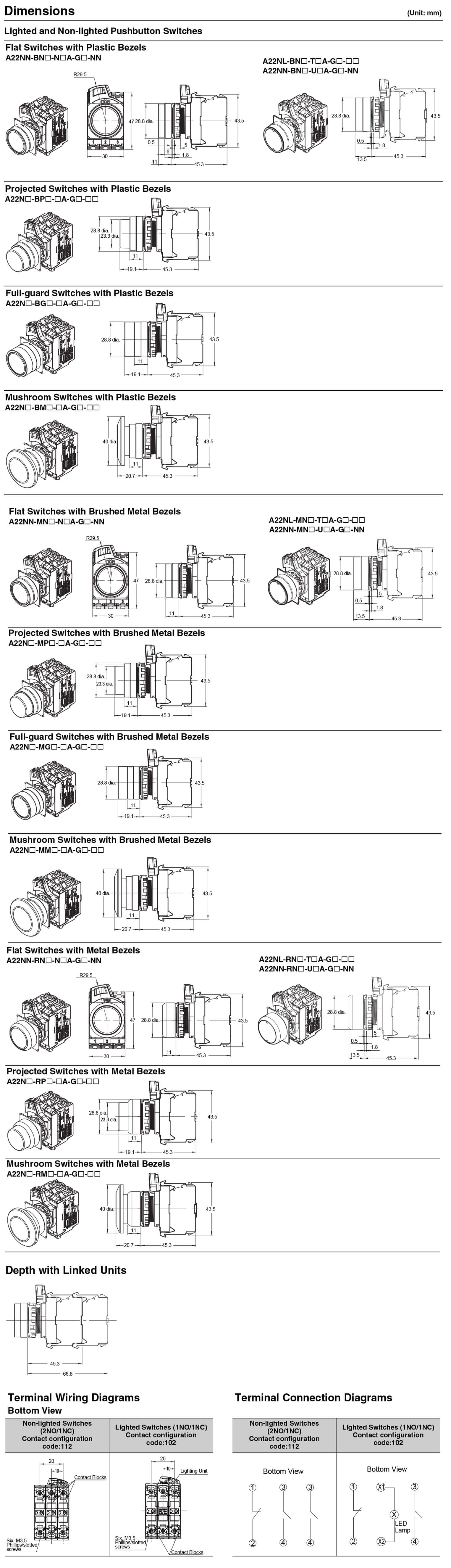

Terminal connection diagrams

Non-lighted switches (2NO/1NC)

Contact configuration code:112

Lighted switches (1NO/1NC)

Contact configuration code:102

Subassemblies

Switch structure
You can order Operation units, LED lamp, Mounting collars, and Contact blocks individually. Use them in combination for models that are not available as assembled switches. They can also be used as inventory for maintenance parts.

Reference for:	A22NL-BGM-TGA-G102-G Momentary	A22NL-BGA-TGA-P102-GC Alternate
Operational unit	A22NZ-BNM-TRA	A22NZ-BNA-TGA
Mounting collar	A22NZ-H-01
Contact block SPST-NO	A22NZ-S-G1A	A22NZ-S-P1A
Contact block SPST-NC	A22NZ-S-G1B	A22NZ-S-P1B
Lighting unit 24 VAC/VDC	A22NZ-T-C	A22NZ-T-CP
LED lamp 24 VAC/DC	A22NZ-L-RC

Operational units

Lighted/Non-Lighted	Bezel material	Shape	Color	Order code
Lighted/Non-Lighted	Bezel material	Shape	Color	Momentary	Alternate
Lighted	Plastic	Full guard	Green	A22NZ-BGM-TGA	A22NZ-BGA-TGA
	Plastic	Flat	Red	A22NZ-BNM-TRA	A22NZ-BNA-TRA
	Metal	Flat	Green	A22NZ-RNM-TGA	A22NZ-RNA-TGA
	Metal	Projected	Red	A22NZ-RPM-TRA	A22NZ-RPA-TRA
	Brushed metal	Projected	Yellow	A22NZ-MPM-TYA	A22NZ-MPA-TYA
	Brushed metal	Full guard	Blue	A22NZ-MGM-TAA	A22NZ-MGA-TAA
Non-lighted	Plastic	Flat	Red	A22NZ-BNM-NRA	A22NZ-BNA-NRA
	Plastic	Projected	Black	A22NZ-BPM-NBA	A22NZ-BPA-NBA
	Metal	Flat	Green	A22NZ-RNM-NGA	A22NZ-RNA-NGA
	Metal	Projected	Red	A22NZ-RPM-NRA	A22NZ-RPA-NRA
	Brushed metal	Flat	White	A22NZ-MNM-NWA	A22NZ-MNA-NWA
	Brushed metal	Projected	Yellow	A22NZ-MPM-NYA	A22NZ-MPA-NYA

Mounting collar

Appearance	Order code
	A22NZ-H-01

Contact blocks

Terminal specification	Contacts	Order code
Screw terminal block	SPST-NO (blue)	A22NZ-S-G1A
Screw terminal block	SPST-NC (orange)	A22NZ-S-G1B
Push-In Plus terminal block	SPST-NO (blue)	A22NZ-S-P1A
Push-In Plus terminal block	SPST-NC (red)	A22NZ-S-P1B
Push-In Plus terminal block	DPST-NO (blue)	A22NZ-S-P2A
	DPST-NC (red)	A22NZ-S-P2B
	SPST-NO/SPST-NC (white)	A22NZ-S-P2C

Lighting units

Terminal specification	Applied voltage	Order code
Screw terminal block	24 VAC/DC	A22NZ-T-C
	100/110/120 VAC	A22NZ-T-D
	200/220/230/240 VAC	A22NZ-T-E
Push-In Plus terminal block	24 VAC/DC	A22NZ-T-CP
	100/110/120 VAC	A22NZ-T-DP
	200/220/230/240 VAC	A22NZ-T-EP

LED lamp

Appearance	Color	Order code
Appearance	Color	24 VAC/DC	100/110/120 VAC	200/220/230/240 VAC
	Red	A22NZ-L-RC	A22NZ-L-RD	A22NZ-L-RE
	Green	A22NZ-L-GC	A22NZ-L-GD	A22NZ-L-GE
	Yellow	A22NZ-L-YC	A22NZ-L-YD	A22NZ-L-YE
	White	A22NZ-L-WC	A22NZ-L-WD	A22NZ-L-WE
	Blue	A22NZ-L-AC	A22NZ-L-AD	A22NZ-L-AE
	Orange	A22NZ-L-OC	A22NZ-L-OD	A22NZ-L-OE

Accessories (Order separately)

Item	Description	Order code
Reinforcement plate	Used to ensure robustness or when the second or third level of contact blocks are attached.	A22NZ-A-C01
Tightening wrench	Used to tighten mounting nuts from the back of the panel.	A22NZ-A-301
LED lamp extractor	Made of rubber and used to easily remove and attach LED lamps.	A22NZ-A-302
Control Box	Used to install one pushbutton.	A22NZ-A-B01Y

Item	Description		Order code
Legend plate frame	Legend Plate with no text on black background. For 22.3-mm panel hole diameter		A22NZ-A-50103
Legend plates	Without text	White	A22Z-3443W
		Black	A22Z-3443B
		Transparent	A22Z-3443C
	White text on red background	“STOP”	A22Z-3443R-4
	White text on black background	“START”	A22Z-3443B-3
