Item
|
100 to 240 VAC 50/60 Hz
|
24 VAC 50/60 Hz or 24 VDC
|
|
Allowable voltage range
|
85 to 110% of power supply voltage
|
|
Power consumption
|
5 VA max.
|
2 W max. (24 VDC), 4 VA max. (24 VAC)
|
|
Sensor inputs
|

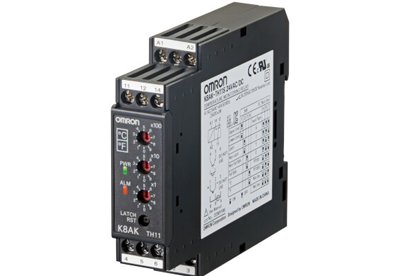

K8AK-TH11S
|
Thermocouple: K, J, T, E; platinum-resistance thermometer: Pt100, Pt1000
|
|
K8AK-TH12S
|
Thermocouple: K, J, T, E, B, R, S, PLII
|
|
Output relay
|
One SPDT relay (5 A at 250 VAC, resistive load)
|
|
External inputs
(for latch setting)
|
Contact input
|
ON: 1 kΩ max., OFF: 100 kΩ min.
|
|
Non-contact input
|
ON residual voltage: 1.5 V max., OFF leakage current: 0.1 mA max.
|
|
Leakage current: Approx. 10 mA
|
|
Setting method
|
Rotary switch setting (set of three switches)
|
|
Indicators
|
Power (PWR): Green LED, relay output (ALM): Red LED
|
|
Other functions
|
Alarm mode (upper limit/lower limit), output normally ON/OFF selection, output latch, setting protection,
fail-safe operation selectable, temperature unit °C/°F
|
|
Ambient operating temperature
|
-20 to 55°C (with no condensation or icing)
|
|
Storage temperature
|
-25 to 65°C (with no condensation or icing)
|
|
Setting accuracy
|
±1% of full scale
|
|
Hysteresis width
|
2°C
|
|
Output relays
(1 × SPDT, normally closed operation)
|
Resistive load
|
5 A at 250 VAC or at 30 VDC
|
|
Maximum contact voltage
|
250 VAC or 30 VDC
|
|
Maximum contact current
|
5 A
|
|
Maximum switching capacity
|
1,250 VA, 150 W
|
|
Mechanical life
|
10,000,000 operations
|
|
Electrical life
|
50,000 operations at 5 A, 250 VAC or 30 VDC
|
|
Sampling cycle
|
100 ms
|
|
Weight
|
160 g
|
|
Degree of protection
|
IP20
|
|
Memory protection
|
Non-volatile memory (number or writes: 1,000,000)
|
|
Safety standards
|
Approved standards
|
EN 61010-1 (Pollution level 2, overvoltage category II)
|
|
Application standards
|
EN 61326-1, UL 61010-1, Korean Radio Waves Act (Act 10564), CSA:CAN/CSA C22.2 No.14, CCC: GB14048.5
|
|
Crimp terminals
|
Two solid wires of 2.5 mm2 or two ferrules of 1.5 mm2 with insulation sleeves can be tightened together
|
|
Case material
|
PC and ABS
|
|
Mounting
|
Mounted to DIN-rail
|
|
Size in mm (H×W×D)
|
90×22.5×100
|
