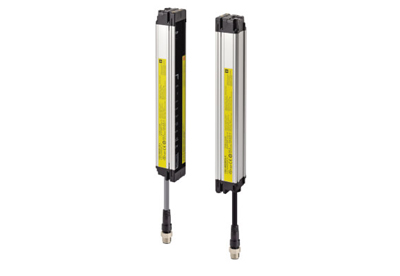

Hand protection

Dia. 25 mm

20 mm

0.2 to 7 m

185 to 2,065

F3SJ-B ____ P25

8

185

F3SJ-B0185P25

10

225

F3SJ-B0225P25

14

305

F3SJ-B0305P25

18

385

F3SJ-B0385P25

22

465

F3SJ-B0465P25

26

545

F3SJ-B0545P25

30

625

F3SJ-B0625P25

34

705

F3SJ-B0705P25

38

785

F3SJ-B0785P25

42

865

F3SJ-B0865P25

46

945

F3SJ-B0945P25

50

1,025

F3SJ-B1025P25

54

1,105

F3SJ-B1105P25

58

1,185

F3SJ-B1185P25

62

1,265

F3SJ-B1265P25

66

1,345

F3SJ-B1345P25

70

1,425

F3SJ-B1425P25

74

1,505

F3SJ-B1505P25

78

1,585

F3SJ-B1585P25

82

1,665

F3SJ-B1665P25

86

1,745

F3SJ-B1745P25

90

1,825

F3SJ-B1825P25

94

1,905

F3SJ-B1905P25

98

1,985

F3SJ-B1985P25

102

2,065

F3SJ-B2065P25

3 m

M12 connector (8-pin)

F39-JD3A

7 m

F39-JD7A

10 m

F39-JD10A

15 m

F39-JD15A

20 m

F39-JD20A

Top/bottom bracket

Top/bottom bracket for F3SJ-E/B

2 for an emitter,

2 for a receiver,

total of 4 per set

F39-LJB1

Intermediate bracket

In combination use with top/bottom bracket
for F3SJ-E/B

Can be used as free-location bracket.

1 set with 2 pieces

F39-LJB2

Quick mount bracket

Quick mount bracket for F3SJ-E/B

Supports M6 slide nut for aluminum frame.

1 set with 2 pieces

F39-LJB3-M6

Quick mount bracket for F3SJ-E/B

Supports M8 slide nut for aluminum frame.

F39-LJB3-M8

Quick mount M6 bracket

Quick mount M8 bracket

Bracket to mount an intermediate bracket to the aluminum frame
with a single touch.

Hexagon socket head cap screws
(M6 × 10) are included.

F39-LJB3-M6K

Hexagon socket head cap screws
(M8 × 14) are included.

F39-LJB3-M8K

Compatible mounting bracket

Mounting bracket used when replacing existing area sensors
(F3SJ-A or F3SN) with the F3SJ-E/B.

2 for an emitter,

2 for a receiver,

total of 4 per set

F39-LJB4

Contact mount bracket

Bracket to closely contact the back side of the sensor.

2 for an emitter,

2 for a receiver,

total of 4 per set

F39-LJB5

Laser pointer for F3SJ

F39-PTJ

Sensor type

Type 4 safety light curtain

Setting tool connection

Parameter settings: Not available

Safety category

Safety purpose of category 4, 3, 2, 1, or B

Detection capability

Opaque objects 25 mm in diameter

Beam gap (P)

20 mm

Number of beams (n)

8 to 102

Protective height (PH)

185 to 2,065 mm

Lens diameter

Diameter 5 mm

Operating range

0.2 to 7 m

Response time (under stable light incident condition)

ON to OFF

15 ms max. (response time at 1 set connection, series connection of 2 sets or 3 sets)

OFF to ON

70 ms max. (response time at 1 set connection, series connection of 2 sets or 3 sets)

Startup waiting time

2 s max.

Power supply voltage (Vs)

SELV/PELV 24 VDC±20% (ripple p-p 10% max.)

Consumption current (no load)

Emitter: Up to 22 beams: 52 mA max., 26 to 42 beams: 68 mA max., 46 to 62 beams: 75 mA max.,

66 to 82 beams: 88 mA max., 86 to 102 beams: 101 mA max.

Receiver: Up to 22 beams: 45 mA max., 26 to 42 beams: 50 mA max., 46 to 62 beams: 56 mA max.,

66 to 82 beams: 61 mA max., 86 to 102 beams: 67 mA max.

Light source (emitted wavelength)

Infrared LED (870 nm)

Effective aperture angle (EAA)

Based on IEC 61496-2. Within ±2.5° for both emitter and receiver when the detection distance is 3 m or over

Safety outputs (OSSD)

Two PNP transistor outputs, load current 200 mA max., residual voltage 2 V max. (except for voltage drop due to cable extension), Leakage current 1 mA max., load inductance 2.2 H max.

, Maximum capacity load 1 μF

Auxiliary output 1

One PNP transistor outputs, load current 100 mA max., residual voltage 2 V max. (except for voltage drop due to cable extension), leak current 1 mA max.

Output operation mode

Safety output: On when receiving light

Auxiliary output:

– Reverse output of safety output for a basic system

– ON when muting/override for a muting system

Input voltage

ON voltage: Vs-3 V to Vs, OFF voltage: 0 V to 1/2 Vs or open

Mutual interference prevention function

Mutual interference prevention algorithm prevents interference in up to 3 sets.

Series connection

Time division emission by series connection

Number of connections: up to 3 sets (between F3SJ-Bs only)Other models cannot be connected.

Total number of beams: up to 192 beams

Maximum cable length for 2 sets: no longer than 7 m

Test function

Self test (at power-ON and at power distribution)

External test (emission stop function by test input)

Safety-related functions

Interlock (basic system)

External device monitoring (basic system)

Muting (muting system)

Override (muting system)

Connection type

Connector method (M12, 8-pin)

Protection circuit

Output short-circuit protection, and power supply reverse polarity protection

Ambient temperature

Operating: -10 to 55°C (non-freezing), Storage: -25 to 70°C

Ambient humidity

Operating: 35% to 85% (no condensation), Storage: 35% to 95% RH

Operating ambient light intensity

Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max.

Insulation resistance

20 MΩ min. (at 500 VDC)

Dielectric strength

1,000 VAC 50/60 Hz, 1 min

Degree of protection

IP65 (IEC 60529)

Vibration resistance

Malfunction: 10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps in X, Y, and Z directions

Shock resistance

Malfunction: 100 m/s2, 1,000 times each in X, Y, and Z directions

Pollution degree

Pollution degree 3 (IEC 60664-1)

Power cable

Connection method: Prewired connector cable, cable length 0.3 m, connector type (M12, 8-pin), connector: IP67 rated (when mated)

Number of wires: 8 wires

Cable diameter: Dia. 6 mm

Allowable bending radius: R5 mm

Extension cable

30 m max.

Material

Case: Aluminum

Cap: ABS resin, PBT

Optical cover: PMMA resin (acrylic)

Cable: Oil resistant PVC

Weight (packed state)

Weight (g) = (protective height) × 2.7 + 500

Accessories

Test rod, Instruction manual, User’s manual (CD-ROM)

Applicable standards

IEC 61496-1, EN 61496-1 UL 61496-1, Type 4 ESPE (Electro-sensitive protective equipment)

IEC 61496-2, CLC/TS 61496-2, UL 61496-2, Type 4 AOPD (Active opto-electronic protective devices)

IEC 61508-1 to -3, EN 61508-1 to -3 SIL3

IEC 13849-1: 2006, EN ISO 13849-1: 2008 (PLe, Cat.4)

UL 508, UL 1998, CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8
