Açıklama

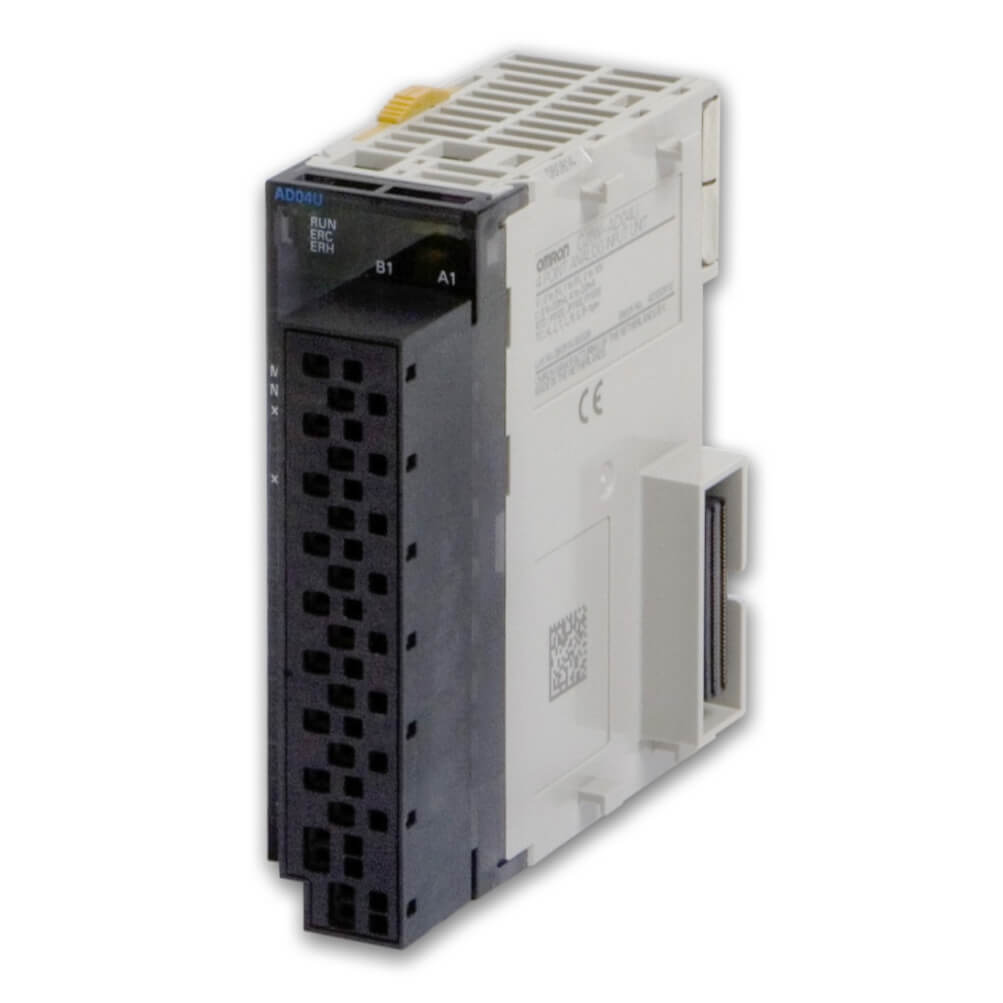

Omron CJ1W-AD04U(SL): CJ Serisi Analog I/O ve Kontrol Ünitesi
Omron CJ1W-AD04U; Universal analog input unit, 4 x inputs 1 to 5 V, 0 to 5 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA, thermocouple (K, J, T, L, R, S, B), Pt100, Pt1000, JPt100, screwless clamp terminal
Teknik Özellikler
| I/O system | CJ I/O Bus |
| Expansion unit type | Special I/O Unit |
| Type of module | Analog I/O |
| Number of analog inputs | 4 |
| Temperature input type | B, J, JPt100, K, L, Pt100, Pt1000, R, S, T |
| Linear analog input type | -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Resolution of the analog inputs | 14 Bit |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| I/O connection type | Screwless clamp |
| Number of I/O connectors | 1 |
| Detachable I/O connector | + |
| Suitable for safety functions | – |
| Height | 90 mm |
| Width | 31 mm |
| Depth | 85 mm |
| Product Weight (unpacked) | 186 g |
