Description

E6A2-C

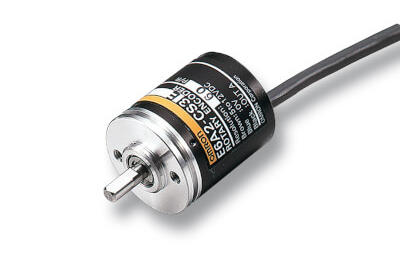

The E6A family of rotary encoders features a small sized dia 25mm housing.

Size dia. in mm	Output phase	Power supply voltage	Output form	Resolution (pulse/rotation)	Order code
25	A	5 to 12 VDC	NPN voltage output	10, 20, 60, 100, 200, 300, 360, 500	E6A2-CS3E
		5 to 12 VDC	NPN open collector	10, 20, 60, 100, 200, 300, 360, 500	E6A2-CS3C
		12 to 24VDC	NPN open collector	10, 20, 60, 100, 200, 300, 360, 500	E6A2-CS5C
	A, B	5 to 12 VDC	NPN voltage output	100, 200, 360, 500	E6A2-CW3E
		5 to 12 VDC	NPN open collector	100, 200, 360, 500	E6A2-CW3C
		12 to 24VDC	NPN open collector	100, 200, 360, 500	E6A2-CW5C
	A, B, Z	5 to 12 VDC	NPN voltage output	100, 200, 360, 500	E6A2-CWZ3E
		5 to 12 VDC	NPN open collector	100, 200, 360, 500	E6A2-CWZ3C
		12 to 24VDC	NPN open collector	100, 200, 360, 500	E6A2-CWZ5C
