Omron E3FA/E3FB-B/-V

Contact sales

+90 216 540 59 91

Request a Price Quote

Category:

Description

E3F_-B/-V

Transparent object detection sensor in compact M18 housing

The E3FA/E3FB-B/-V provides enhanced detection stability for the detection of transparent objects. It allows an easy and intuitive adjustment for individual requirements.

  • Easy adjustment to individual requirements for all transparent materials
  • P-opaquing technology enables reliable detection of PET bottles also in dusty environments
  • Coaxial optics (E3F[..]-B_1) for stable, position-independent detection

Features

Compact size and shape

e3favse3f2-sensor prod

Compact size and shape. Can be installed almost anywhere.

Transparent bottle detection

e3fa petfles-03 prod

Omron’s unique p-opaquing technology enables very reliable detection of objects with double refraction properties like PET bottles or plastic trays.

Foil and flat glass detection

e3fa folie-02 prod

Limited-reflective types optimized for detecting flat transparent objects like packaging film or glass panels without reflectors.

High housing protection

e3fa-waterprotection-02 prod

Tight IP67/IP69K housing construction for high-level water protection.



Specifications & ordering info

Ordering Information

Sensor type

Sensing distance

Connection method

Order code

E3FA (plastic housing)

E3FB (metal housing)

NPN output

PNP output

NPN output

PNP output

Limited distance reflective

10 to 50 mm

–

–

2 m

–

E3FA-VN11 2M

E3FA-VP11 2M

E3FB-VN11 2M

E3FB-VP11 2M

–

⬛

–

–

E3FA-VN21

E3FA-VP21

E3FB-VN21

E3FB-VP21

Coaxial retro-reflective with
P-opaquing function

1

0 to 500 mm
(with E39-RP1)

–

–

2 m

–

E3FA-BN11 2M

E3FA-BP11 2M

E3FB-BN11 2M

E3FB-BP11 2M

–

⬛

–

–

E3FA-BN21

E3FA-BP21

E3FB-BN21

E3FB-BP21

Retro-reflective with
P-opaquing function

1

0.1 to 2m
(with E39-RP1)

–

–

2 m

–

E3FA-BN12 2M

E3FA-BP12 2M

E3FB-BN12 2M

E3FB-BP12 2M

–

⬛

–

–

E3FA-BN22

E3FA-BP22

E3FB-BN22

E3FB-BP22

Ratings and Specifications

Sensing method

Limited distance reflective

Retro-reflective with P-opaquing function

Model

NPN
output

Pre-wired

E3F_-VN11 2M

E3F_-BN11 2M

E3F_-BN12 2M

M12 Connector

E3F_-VN21

E3F_-BN21

E3F_-BN22

PNP
output

Pre-wired

E3F_-VP11 2M

E3F_-BP11 2M

E3F_-BP12 2M

Item

M12 Connector

E3F_-VP21

E3F_-BP21

E3F_-BP22

Sensing distance

10 to 50 mm

0 to 500 mm (coaxial)

0.1 to 2 m

Light source (wavelength)

Red LED (624 nm)

Power supply voltage

10 to 30 VDC (include voltage ripple of 10%(p-p) max.)

Operation mode

Light-ON/Dark-ON selectable by wiring

Sensitivity adjustment

One-turn adjuster

Protection circuits

Reversed power supply polarity protection, Output short-circuit protection and Reversed output polarity protection

Response time

0.5 ms

Ambient temperature

Operating

-25 to 55°C

Storage

-30 to 70°C (with no icing or condensation)

Degree of protection

IEC: IP67, DIN 40050-9: IP69K

Material

Case and Nut

E3FA: ABS, E3FB: Nickel brass

Lens and Display

PMMA

Accessories

Cable connectors

Size

Shape

Type

Features

Material

Order code

Nut

Cable

Connector straight

Connector l-shaped

M8

3 pin

Brass (CuZn)

PVC 2 m

XS3F-M8PVC3S2M

XS3F-M8PVC3A2M

PUR 2 m

XS3F-M8PUR3S2M

XS3F-M8PUR3A2M

4pin

PVC 2 m

XS3F-M8PVC4S2M

XS3F-M8PVC4A2M

PUR 2 m

XS3F-M8PUR4S2M

XS3F-M8PUR4A2M

3 pin

Brass (CuZn)

PVC 2 m

XS3F-LM8PVC3S2M

XS3F-LM8PVC3A2M

4 pin

XS3F-LM8PVC4S2M

XS3F-LM8PVC4A2M

Detergent resistant
Wash-down

4 pin

Stainless steel (SUS316L)

PP

1

2 m

Y92E-S08PP4S 2M-L

Y92E-S08PP4A 2M-L

Robotic
(drag chain)

4 pin

Brass (CuZn)

Robotic PVC 2 m

XS3F-M421-402-R

XS3F-M422-402-R

Robotic PUR 2 m

Y92E-M08PUR4S2M-L

Y92E-M08PUR4A2M-L

High robotic (drag chain & torsion)

High robotic PUR 2 m

Y92E-M08PUR4S2M-R

Y92E-M08PUR4A2M-R

M12

2

3 wire

Brass (CuZn)

PVC 2 m

XS2F-M12PVC3S2M

XS2F-M12PVC3A2M

PUR 2 m

XS2F-M12PUR3S2M

XS2F-M12PUR3A2M

4 wire

PVC 2 m

XS2F-M12PVC4S2M

XS2F-M12PVC4A2M

PUR 2 m

XS2F-M12PUR4S2M

XS2F-M12PUR4A2M

5 wire

PVC 2 m

XS2F-M12PVC5S2M

XS2F-M12PVC5A2M

PUR 2 m

XS2F-M12PUR5S2M

XS2F-M12PUR5A2M

3 wire

Brass (CuZn)

PVC 2 m

XS2F-LM12PVC3S2M

XS2F-LM12PVC3A2M

4 wire

XS2F-LM12PVC4S2M

XS2F-LM12PVC4A2M

LED
(power and output LED, PNP/NPN)

3 wire

Nickel plated brass

PVC 2 m

–

XS2F-M12PVC3A2MPLED

4 wire

–

XS2F-M12PVC4A2MPLED

3 wire

PUR 2 m

–

XS2F-M12PUR3A2MPLED

4 wire

–

XS2F-M12PUR4A2MPLED

Detergent resistant
Wash-down

4 wire

Stainless steel (SUS316L)

PP

1

2 m

Y92E-S12PP4S 2M-L

Y92E-S12PP4A 2M-L

105°C
Heat resistant

4 wire

Stainless steel (SUS316L)

Heat resistant PVC 2 m

XS2F-E421-D80-E

XS2F-E422-D80-E

Twist & click

4 wire

Nickel plated Zinc

PVC 2 m

XS5F-D421-D80-F

XS5F-D422-D80-F

PUR 2 m

XS5F-D421-D80-P

XS5F-D422-D80-P

Robotic
(drag chain)

4 wire

Brass (CuZn)

Robotic PVC 2 m

XS2F-D421-D80-F

XS2F-D422-D80-F

Robotic PUR 2 m

Y92E-M12PUR4S2M-L

Y92E-M12PUR4A2M-L

High robotic
(drag chain & torsion)

High grade robotic PUR 2 m

Y92E-M12PUR4S2M-R

Y92E-M12PUR4A2M-R

8 pin

8 wire shielded cable

Brass (CuZn)

Shielded PUR 2m

Y92E-M12PURSH8S2M-L

–

Fiber amplifier (E3X) connector

Fiber
amplifier connectors

Special fiber
connector – 4 wire

PBT

PVC 2 m

E3X-CN21

Special fiber
connector + M8 plug

Plug: Zinc
diecast

PVC 30 cm with M8
4-pin plug

E3X-CN21-M3J-2 0.3M

Special
fiber
connector + M12 plug

PVC 30 cm with M12
4-pin plug

E3X-CN21-M1J 0.3M

Size

Shape

Type

Features

Material

Order code

Nut

Cable

Connector straight

Connector l-shaped

M8/M12

Confection-able

Plugs and connectors for self
assembly

Brass

n.a.

XS2C/G, XS5C/G
Y92E_conf

M12

Field I/0
boxes

Direct wiring or DeviceNet communication

–

XW3D

M8/M12

T-connectors, covers, accessories and extended wiring portfolio

n.a.

–

XS2R, XS3R, XY2F, …

Downloads

Brochures

Datasheet

Related products

  • Omron E3Z Laser, Fotoelektrik Sensör

    E3Z Laser

  • Omron E3T-C

    E3T-C

  • Omron E3T

    E3T

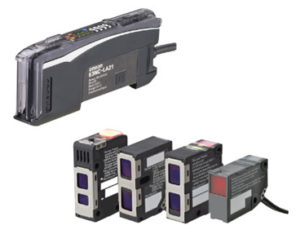

  • Omron E3NC
