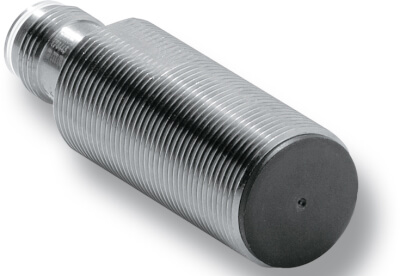

Silindirik pirinç muhafaza içerisinde uzun (üç kat) mesafeli Endüktif sensör

Daha uzun algılama mesafeleri için E2Q5 ‘i inceleyiniz.

  • Talep edilen algılama gereksinimler ve geliştirilmiş sensor koruması için üç kat fazla algılama mesafesi
  • IP67 ve IP69k

Özellikler ve sipariş bilgisi

Ordering information

Pre-wired

(For different cable materials and lengths, special housing length or special connectors, please refer to complete datasheet.)

Size

E2A3

E2A3

Sensing distance

Thread length (overall length)

Output configuration

Order code (for pre-wired types with 2 m PVC cable)

Operation mode: NO

Operation mode: NC

M8

¢

3.0 mm

27 (40) mm

PNP

E2A3-S08KS03-WP-B1 2M

E2A3-S08KS03-WP-B2 2M

NPN

E2A3-S08KS03-WP-C1 2M

E2A3-S08KS03-WP-C2 2M

M12

¢

6.0 mm

34 (50) mm

PNP

E2A3-M12KS06-WP-B1 2M

E2A3-M12KS06-WP-B2 2M

NPN

E2A3-M12KS06-WP-C1 2M

E2A3-M12KS06-WP-C2 2M

M18

¢

11.0 mm

39 (60) mm

PNP

E2A3-M18KS11-WP-B1 2M

E2A3-M18KS11-WP-B2 2M

NPN

E2A3-M18KS11-WP-C1 2M

E2A3-M18KS11-WP-C2 2M

M30

¢

20.0 mm

44 (65) mm

PNP

E2A3-M30KS20-WP-B1 2M

E2A3-M30KS20-WP-B2 2M

NPN

E2A3-M30KS20-WP-C1 2M

E2A3-M30KS20-WP-C2 2M

Connector types (M12)E2A3

Size

E2A3

E2A3

Sensing distance

Thread length (overall length)

Output configuration

Order code (for M12 connector types)

Operation mode: NO

Operation mode: NC

M8

¢

3.0 mm

27 (44) mm

PNP

E2A3-S08KS03-M1-B1

E2A3-S08KS03-M1-B2

NPN

E2A3-S08KS03-M1-C1

E2A3-S08KS03-M1-C2

M12

¢

6.0 mm

34 (49) mm

PNP

E2A3-M12KS06-M1-B1

E2A3-M12KS06-M1-B2

NPN

E2A3-M12KS06-M1-C1

E2A3-M12KS06-M1-C2

M18

¢

11.0 mm

39 (54) mm

PNP

E2A3-M18KS11-M1-B1

E2A3-M18KS11-M1-B2

NPN

E2A3-M18KS11-M1-C1

E2A3-M18KS11-M1-C2

M30

¢

20.0 mm

44 (59) mm

PNP

E2A3-M30KS20-M1-B1

E2A3-M30KS20-M1-B2

NPN

E2A3-M30KS20-M1-C1

E2A3-M30KS20-M1-C2

Specifications

Item

M8

M12

M18

M30

E2A3-S08KS03

E2A3-M12KS06-

E2A3-M18KS11

E2A3-M30KS20

Sensing distance

3 mm±10%

6 mm±10%

11 mm±10%

20 mm±10%

Response frequency

700 Hz

350 Hz

250 Hz

80 Hz

Power supply voltage
(operating voltage)

12 to 24 VDC. Ripple (p-p): 10% max. (10 to 32 VDC)

Protective circuits

Power supply reverse
polarity protection, surge suppressor,
short-circuit protection

Output reverse polarity protection, power supply reverse polarity protection, surge suppressor, short-circuit
protection

Ambient temperature

Operating

-25 to 70°C

Storage

Degree of protection

IP67 after IEC 60529; IP69K after DIN 40050 part 9

Material

Case

Stainless steel

Brass-nickel plated

Sensing surface

PBT

Aksesuarlar

Cable connectors

Size

Shape

Type

Features

Material

Order code

Nut

Cable

Connector straight

Connector l-shaped

M8

E2A3

E2A3

3 pin

Brass (CuZn)

PVC 2 m

XS3F-M8PVC3S2M

XS3F-M8PVC3A2M

PUR 2 m

XS3F-M8PUR3S2M

XS3F-M8PUR3A2M

4pin

PVC 2 m

XS3F-M8PVC4S2M

XS3F-M8PVC4A2M

PUR 2 m

XS3F-M8PUR4S2M

XS3F-M8PUR4A2M

E2A3

3 pin

Brass (CuZn)

PVC 2 m

XS3F-LM8PVC3S2M

XS3F-LM8PVC3A2M

4 pin

XS3F-LM8PVC4S2M

XS3F-LM8PVC4A2M

E2A3

Detergent resistant
Wash-down

4 pin

Stainless steel (SUS316L)

PP

2 m

Y92E-S08PP4S 2M-L

Y92E-S08PP4A 2M-L

E2A3

Robotic
(drag chain)

4 pin

Brass (CuZn)

Robotic PVC 2 m

XS3F-M421-402-R

XS3F-M422-402-R

Robotic PUR 2 m

Y92E-M08PUR4S2M-L

Y92E-M08PUR4A2M-L

High robotic (drag chain & torsion)

High robotic PUR 2 m

Y92E-M08PUR4S2M-R

Y92E-M08PUR4A2M-R

M12

E2A3

E2A3

3 wire

Brass (CuZn)

PVC 2 m

XS2F-M12PVC3S2M

XS2F-M12PVC3A2M

PUR 2 m

XS2F-M12PUR3S2M

XS2F-M12PUR3A2M

4 wire

PVC 2 m

XS2F-M12PVC4S2M

XS2F-M12PVC4A2M

PUR 2 m

XS2F-M12PUR4S2M

XS2F-M12PUR4A2M

5 wire

PVC 2 m

XS2F-M12PVC5S2M

XS2F-M12PVC5A2M

PUR 2 m

XS2F-M12PUR5S2M

XS2F-M12PUR5A2M

E2A3

3 wire

Brass (CuZn)

PVC 2 m

XS2F-LM12PVC3S2M

XS2F-LM12PVC3A2M

4 wire

XS2F-LM12PVC4S2M

XS2F-LM12PVC4A2M

E2A3

LED
(power and output LED, PNP/NPN)

3 wire

Nickel plated brass

PVC 2 m

XS2F-M12PVC3A2MPLED

4 wire

XS2F-M12PVC4A2MPLED

3 wire

PUR 2 m

XS2F-M12PUR3A2MPLED

4 wire

XS2F-M12PUR4A2MPLED

E2A3

Detergent resistant
Wash-down

4 wire

Stainless steel (SUS316L)

PP

2 m

Y92E-S12PP4S 2M-L

Y92E-S12PP4A 2M-L

E2A3

105°C
Heat resistant

4 wire

Stainless steel (SUS316L)

Heat resistant PVC 2 m

XS2F-E421-D80-E

XS2F-E422-D80-E

E2A3

Twist & click

4 wire

Nickel plated Zinc

PVC 2 m

XS5F-D421-D80-F

XS5F-D422-D80-F

PUR 2 m

XS5F-D421-D80-P

XS5F-D422-D80-P

E2A3

Robotic
(drag chain)

4 wire

Brass (CuZn)

Robotic PVC 2 m

XS2F-D421-D80-F

XS2F-D422-D80-F

Robotic PUR 2 m

Y92E-M12PUR4S2M-L

Y92E-M12PUR4A2M-L

High robotic
(drag chain & torsion)

High grade robotic PUR 2 m

Y92E-M12PUR4S2M-R

Y92E-M12PUR4A2M-R

E2A3

E2A3

8 pin

8 wire shielded cable

Brass (CuZn)

Shielded PUR 2m

Y92E-M12PURSH8S2M-L

Fiber amplifier (E3X) connector

E2A3

Fiber
amplifier connectors

Special fiber
connector – 4 wire

PBT

PVC 2 m

E3X-CN21

E2A3

Special fiber
connector + M8 plug

Plug: Zinc
diecast

PVC 30 cm with M8
4-pin plug

E3X-CN21-M3J-2 0.3M

Special
fiber
connector + M12 plug

PVC 30 cm with M12
4-pin plug

E3X-CN21-M1J 0.3M

Size

Shape

Type

Features

Material

Order code

Nut

Cable

Connector straight

Connector l-shaped

M8/M12

E2A3

Confection-able

Plugs and connectors for self
assembly

Brass

n.a.

XS2C/G, XS5C/G
Y92E_conf

M12

E2A3

Field I/0
boxes

Direct wiring or DeviceNet communication

XW3D

M8/M12

E2A3

T-connectors, covers, accessories and extended wiring portfolio

n.a.

XS2R, XS3R, XY2F, …

Kablolar ve Aksesuarlar

XS2


M12 su geçirmez tek uçlu ve uzatma kablosu setlerine sahip XS2 Konnektör Kablo Setleri.

XS3


Daha az bakım için M8 tek uçlu ve uzatma kablo setlerine sahip XS3 Konnektör Kablo Setleri.

XS5C/XS5G


XS5C/XS5G-D418 IDC tipi konnektörler özel araçlar olmadan hızlı ve kolay bağlantı sunacak şekilde özel olarak tasarlanmıştır. İhtiyaç duyacağınız araçlar sadece kablo kesiciler ve somun anahtarlarıdır.

Y92E-S_PP


Gıda, İçecek ve İlaç uygulamaları için IP69K Sınıfı Sensör Konektörlü Kablo Setleri.
