ZX-T

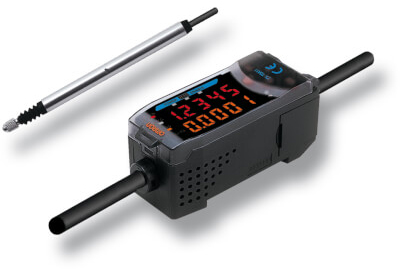

Smart Contact measurement sensor

ZX-T is ideal for applications where the target object may contain oil deposits or other micro-structures. In this case contact measurement is the most reliable way.

  • Modular platform concept for different sensing technologies
  • Air-retracting types for automated inspection
  • Multipoint measurement with up to 8 sensors
  • Pressing force alarm prevents malfunction
  • Strong ball bearing structure assures long life time

Specifications & ordering info

Sensors

Sensor heads

Size

Type

Sensing distance

Resolution (See note.)

Order code

6 dia.

Short type

1 mm

0.1 µm

ZX-TDS01T

Standard type

4 mm

ZX-TDS04T

Low-load type

ZX-TDS04T-L

8 dia.

Standard type

10 mm

0.4 µm

ZX-TDS10T

Ultra-low-load type

ZX-TDS10T-L

Air lift type

ZX-TDS10T-V

Air lift/air push type

ZX-TDS10T-VL

Note: The resolution refers to the minimum value that can be read when a ZX-TDA_1 amplifier unit is connected.

Amplifier units

Power supply

Output type

Order code

DC

NPN

ZX-TDA11

PNP

ZX-TDA41

Accessories (order separately)

Calculating unit

Order code

Calculating unit

ZX-CAL2

ZX-series communications interface unit

Name

Order code

ZX-series communications interface unit

ZX-SF11

SmartMonitor sensor setup tool for Personal Computer connection

Name

Order code

ZX-series communications interface unit

ZX-SF11

ZX-series communications interface unit

+ setup software (CD-ROM)

ZX-SFW11EV3

 ,

ZX-series sensor setup and logging software (CD-ROM)

ZX-SW11EV3

Cables with connectors on both ends (for extension)

Cable length

Order code

1 m

ZX-XC1A

4 m

ZX-XC4A

8 m

ZX-XC8A

* Robot cable models are also available. The model numbers are ZX-XC_R.

Preamplifier mounting brackets

Remarks

Order code

Attached to each sensor head

ZX-XBT1

For DIN track mounting

ZX-XBT2

Actuators

Type (material)

Screw section

Appearance

Application

Applicable sensor
(see note.)

Order code

ZX-TDS_T

Ball type (steel)

Female screw

M2.5×0.45

Measuring ordinary flat surfaces (standard
actuator supplied with the ZX-TDS series)

D5SN-TB1

Ball type
(carbide steel)

Female screw

M2.5×0.45

Measurements where abrasion resistance
is critical

Measured objects: Carbide (HR90) or lower.

D5SN-TB2

Ball type (ruby)

Female screw

M2.5×0.45

Measurements where abrasion resistance
is critical

Measured objects: Carbide (HR90) or higher.

D5SN-TB3

Needle type
(carbide steel)

Male screw

M2.5×0.45

Measuring the bottom of grooves and holes

D5SN-TN1

Flat
(carbide steel)

Male screw

M2.5×0.45

Measuring spherical objects

D5SN-TF1

Conversion adapter
(stainless steel)

Through-hole female screw

M2.5×0.45

Mounting D5SN-TN1/-TF1 or commercially
available actuators on ZX-TDS-series sensors

D5SN-TA

Note:  Replacement possible  Conversion adapter required

Specifications

Amplifier units

Item

ZX-TDA11

ZX-TDA41

Measurement period

1 ms

Possible average count settings

1, 16, 32, 64, 128, 256, 512, or 1,024

Linear output

Current output: 4 to 20 mA/F.S., max. load resistance: 300 Ω

Voltage output: ±4 V (±5 V, 1 to 5 V

), output impedance: 100 Ω

Judgement outputs
(3 outputs: HIGH/PASS/LOW)

NPN open-collector outputs, 30 VDC, 30 mA max.
Residual voltage: 1.2 V max.

PNP open-collector outputs, 30 VDC, 30 mA max.
Residual voltage: 2 V max.

Zero reset input, timing input, reset input, judgement output hold input

ON: Short-circuited with 0-V terminal or 1.5 V or less

OFF: Open (leakage current: 0.1 mA max.)

ON: Supply voltage short-circuited or supply voltage of 1.5 V or less

OFF: Open (leakage current: 0.1 mA max.)

Function

  • Measurement value display
  • present value/set value/output value display
  • Display reverse
  • ECO mode
  • number of display digit changes
  • Sample hold
  • peak hold
  • bottom hold, peak-to-peak hold
  • Self-peak hold
  • self-bottom hold
  • zero reset
  • Initial reset
  • direct threshold value setting
  • position teaching
  • Hysteresis width setting
  • timing inputs
  • reset input
  • Judgement output hold input
  • monitor focus
  • (A-B) calculations
  • (A+B) calculations (see note 4.)
  • sensor disconnection detection
  • Zero reset memory
  • function lock
  • non-measurement setting
  • Clamp value setting
  • scale inversion
  • zero reset indicator
  • Span adjustment
  • warming-up display
  • pressing force alarm

Indicators

Judgement indicators: High (orange), pass (green), low (yellow), 7-segment main digital display (red), 7-segment sub-digital
display (yellow), power ON (green), zero reset (green), enable (green)

Power supply voltage

12 to 24 VDC±10%, ripple (p-p): 10% max.

Current consumption

140 mA max. (with sensor connected), for 24-VDC power supply voltage: 140 mA max. (with sensor connected)

Ambient temperature

Operating and storage: 0 to 50°C (with no icing or condensation)

Temperature characteristic

0.03% F.S./°C

Connection method

Prewired (standard cable length: 2 m)

Weight (packed state)

Approx. 350 g

Materials

Case: PBT (polybutylene terephthalate), cover: Polycarbonate

Sensor heads

Item

ZX-TDS01T

ZX-TDS04T

ZX-TDS04T-L

Measurement range

1 mm

4 mm

Maximum actuator travel distance

Approx. 1.5 mm

Approx. 5 mm

Resolution

0.1 µm

Linearity

±0.3% F.S.

Operating force

Approx. 0.7 N

Approx. 0.25 N

Degree of protection (sensor head)

IEC60529, IP67

IEC60529, IP54

Mechanical durability

10,000,000 operations min.

Ambient temperature

Operating: 0 to 50°C, storage:  15 to 60°C (with no icing or condensation)

Ambient humidity

Operating and storage: 35% to 85% (with no icing or condensation)

Temperature characteristic

Sensor head

0.03% F.S./°C

Preamplifier

0.01% F.S./°C

Weight (packed state)

Approx. 100 g

Materials

Sensor head

Stainless steel

Preamplifier

Polycarbonate

Accessories

Instruction manual, preamplifier mounting brackets (ZX-XBT1)
