Açıklama

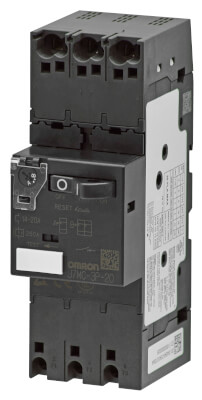

J7MC; Manuel Marş Motoru (Motor Koruma Devre Kesici)

J7MC; MPCB sistemi, Aşırı Yük, Faz Kaybı ve Kısa Devreye karşı koruma

  • Push-In Plus kablolama teknolojisi, kablolama ve bakım süresinden tasarruf etmenizi sağlar
  • J7KC kontaktör modeli ile kullanıldığında 2,2 kW (200 – 240 VAC) * veya 5,5 kW (380 – 440 VAC) değerlerine sahip AC-3 sınıfı motorların kontrol edilmesi için idealdir.
  • Basmalı yaylı switch (standart tip) ve döner switch (yüksek performanslı tip)
  • Yüksek akım kesme kapasitesi (Maks. 100 kA/440 VAC)
  • Ayarların kazayla değiştirilmesini önlemek amacıyla döner switch kapağı standart olarak takılmıştır. Başlatma emniyeti sağlamak için asma kilitle kilitlenebilir.
  • Ana emniyet standartlarıyla uyumluluk sertifikalarına sahiptir

* JIS C 8201-4-1’e göre

Özellikler ve sipariş bilgisi

Ordering Information

Main unit

Rocker switch (standard type)

Rated current (A)(Values in () are the current setting range) Order code
0.16 (0.1-0.16) J7MC-3P-E16
0.25 (0.16-0.25) J7MC-3P-E25
0.40 (0.25-0.4) J7MC-3P-E4
0.63 (0.4-0.63) J7MC-3P-E63
1 (0.63-1) J7MC-3P-1
1.6 (1-1.6) J7MC-3P-1E6
2.5 (1.6-2.5) J7MC-3P-2E5
4 (2.5-4) J7MC-3P-4
6.3 (4-6.3) J7MC-3P-6
10 (6.3-10) J7MC-3P-10
13 (9-13) J7MC-3P-13
16 (11-16) J7MC-3P-16
20 (14-20) J7MC-3P-20

Rotary switch (high-performance type)

Rated current (A) (Values in () are the current setting range) Order code
0.16 (0.1-0.16) J7MC-3R-E16
0.25 (0.16-0.25) J7MC-3R-E25
0.40 (0.25-0.4) J7MC-3R-E4
0.63 (0.4-0.63) J7MC-3R-E63
1 (0.63-1) J7MC-3R-1
1.6 (1-1.6) J7MC-3R-1E6
2.5 (1.6-2.5) J7MC-3R-2E5
4 (2.5-4) J7MC-3R-4
6.3 (4-6.3) J7MC-3R-6
10 (6.3-10) J7MC-3R-10
13 (9-13) J7MC-3R-13
16 (11-16) J7MC-3R-16
20 (14-20) J7MC-3R-20

Options (Order Separately)

Auxiliary contact unit

Auxiliary contact Order code
SPST-1NO J73MC-W-10
SPST-1NC J73MC-W-01

Alarm contact unit

Auxiliary contact Order code
SPST-1NO J73MC-K-10
SPST-1NC J73MC-K-01

Insulation stop

Minimum order (bag) Order code
1
(10 pcs./bag)		 For main unit J77MC-A
For optional unit
(For auxiliary contact unit and alarm contact unit)		 J77MC-B

Specifications

J7MC-3P-⬜ (standard type)

Rated current

2

In [A]

 Current setting
range
Rated operating
current [A]		 Instantaneous
trip current
[A]		 3-phase standard motor capacity and full load current

2
 Rated breaking current Icu [kA]
200-240 VAC 380-440 VAC
Capacity [kW] Current [A] Capacity [kW] Current [A] 240 VAC 415 VAC 440 VAC
0.16 0.1 to 0.16 2.1 – – 0.02 0.1 100 100 100
0.25 0.16 to 0.25 3.3 0.03 0.24 0.06 0.21
0.4 0.25 to 0.4 5.2 0.06 0.37 0.1 0.34
0.63 0.4 to 0.63 8.2 — — 0.12 0.41
1 0.63 to 1 13 0.1 0.68 0.2 0.65
1.6 1 to 1.6 20.8 0.2 1.3 0.4 1.15
2.5 1.6 to 2.5 32.5 0.4 2.3 0.75 1.8
4 2.5 to 4 52 0.75 3.5 1.5 3.5
6.3 4 to 6.3 81.9 – – 2.2 4.8 50
10 6.3 to 10 130 1.5 6.9 3.7 7.8 15
2.2 9.5
13 9 to 13 169 2.2 9.5 5.5 10.5 50 10
16 11 to 16 208 3.7 15.5 7.5 13.5 25
20 14 to 20 260 3.7 15.5 11 20 50

J7MC-3R-⬜ (high-performance type)

Rated current

2

In [A]

 Current setting
range
Rated operating
current [A]		 Instantaneous
trip current
[A]		 3-phase standard motor capacity and full load current

2
 Rated breaking current Icu [kA]
200-240 VAC 380-440 VAC
Capacity [kW] Current [A] Capacity [kW] Current [A] 240 VAC 415 VAC 440 VAC
0.16 0.1 to 0.16 2.1 – – 0.02 0.1 100 100 100
0.25 0.16 to 0.25 3.3 0.03 0.24 0.06 0.21
0.4 0.25 to 0.4 5.2 0.06 0.37 0.1 0.34
0.63 0.4 to 0.63 8.2 — — 0.12 0.41
1 0.63 to 1 13 0.1 0.68 0.2 0.65
1.6 1 to 1.6 20.8 0.2 1.3 0.4 1.15
2.5 1.6 to 2.5 32.5 0.4 2.3 0.75 1.8
4 2.5 to 4 52 0.75 3.5 1.5 3.5
6.3 4 to 6.3 81.9 – – 2.2 4.8
10 6.3 to 10 130 1.5 6.9 3.7 7.8 50
2.2 9.5
13 9 to 13 169 2.2 9.5 5.5 10.5
16 11 to 16 208 3.7 15.5 7.5 13.5 50 35

2
20 14 to 20 260 3.7 15.5 11 20

Characteristics

Model J7MC-3P-⬜ (standard type) J7MC-3R-⬜ (high-performance type)
Item
Switch type Rocker switch Rotary switch
Number of poles 3
Rated current In 0.16 to 20 A
Rated operational voltage Ue 200 to 690 V
Rated frequency 50/60 Hz
Rated insulation voltage 690VAC
Rated impulse dielectric strength 6 kV
Use category IEC 60947-2 (circuit breaker),
JIS C 8201-2		 Cat.A
IEC 60947-4-1 (motor starter),
JIS C 8201-4-1		 AC-3
Trip class (IEC 60947-4-1/JIS C 8201-4-1) 10 Trips within 4 minutes at 150% Ie on hot start, trips in 4 to 10 seconds at 720% Ie on cold start
Instantaneous trip characteristics 13 x Ie max.
Power loss (3-phase reference value) Rated current 0.16 to 2.5 A: 6 W
Rated current 4 to 6.3 A: 6.5 W
Rated current 10 to 20 A: 7 W		 Rated current 0.16 to 1.6 A: 6 W
Rated current 2.5 to 4 A: 6.5 W
Rated current 6.3 to 20 A: 7 W
Endurance Mechanical 100,000 cycles In=0.16 to 20 A
Electrical 100,000 cycles In=0.16 to 20 A
Number of terminal insertions and removals [cycles] 20
Maximum operate frequency (motor starts) [cycles/hour] 25
Phase failure protection Yes
Trip indicator Yes
Test trip function Yes
Rated limit breaking capacity
Icu:
Rated limit breaking capacity [kA]
(Breaking duty O-CO)
Ics:
Rated operating breaking capacity [kA]
(Breaking duty O-CO-CO)Ics=100%Icu (Icu=100 kA)		 Rated operational
current Ie
Current setting [A]		 IEC 60947-2/JIS C 8201-2 UL IEC 60947-2/JIS C 8201-2 UL
240 V
200 V		 415 V
400 V		 460 V
440 V		 500 V 690 V
600 V		 480 V 240 V
200 V		 415 V
400 V		 460 V
440 V		 500 V 690 V
600 V		 480 V
Icu Ics Icu Ics Icu Ics Icu Ics Icu Ics Icu Ics Icu Ics Icu Ics Icu Ics Icu Ics Icu Ics Icu Ics
0.1-0.16 100 100 100 100 100 50 100 100 100 100 100 50
0.16-0.25 100 100 100 100 100 50 100 100 100 100 100 50
0.25-0.4 100 100 100 100 100 50 100 100 100 100 100 50
0.4-0.63 100 100 100 100 100 50 100 100 100 100 100 50
0.63-1 100 100 100 100 100 50 100 100 100 100 100 50
1-1.6 100 100 100 100 100 50 100 100 100 100 100 50
1.6-2.5 100 100 100 100 3 2 50 100 100 100 100 8 6 50
2.5-4 100 100 100 100 3 2 50 100 100 100 100 8 6 50
4-6.3 100 100 50 38 50 38 3 2 22 100 100 100 100 6 5 50
6.3-10 100 100 15 11 10 8 3 2 22 100 100 50 38 50 38 6 5 50
9-13 100 50 38 10 8 6 5 3 2 22 100 100 50 38 42 32 6 5 50
11-16 100 25 19 10 8 6 5 3 2 22 100 50 38 35

2
 27 10 8 4 3 50
14-20 50 38 25 19 10 8 6 5 3 2 22 100 50 38 35

2
 27 10 8 4 3 50
Vibration resistance Vibration: 10 to 55 Hz, acceleration: 15 m/s2
Shock resistance Shock value 50 m/s2
Degree of protection IP20 (IEC60529)
Operating temperature –20°C to +60°C
Ambient storage temperature –40°C to +80°C (no condensation or icing)
Relative humidity 95% RH max. (no condensation or icing)
Altitude 2000m max.
Weight Approx. 430 g 460 g
Applicable Standards Safety Standard EN 60947-2 (IEC 60947-2), UL60947-4-1, CSA 22.2 No.60947-4-1,
CCC GB/T 14048.2, Electrical Appliances and Material Safety Act (Non-Specified Electrical Appliances and Materials)
